| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,694 pcs
|
6694 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

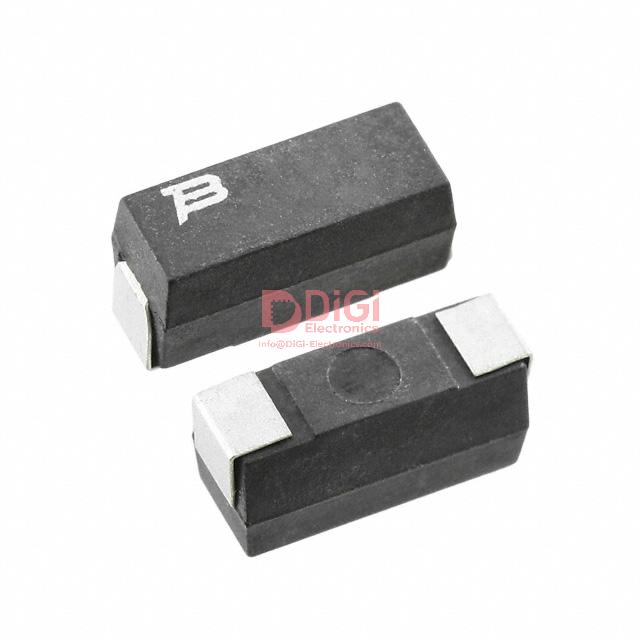

This Bourns CHV1206-FX-1005ELF is a thick film high voltage chip resistor designed for demanding applications. It features a resistance value of 10 MΩ with a tight tolerance of ±1% and a power rating of 0.25W (1/4W) at 70°C. The operating temperature range is -55°C to +155°C, with a temperature coefficient of ±100ppm/°C.
The resistor is housed in a 1206 (3216 Metric) surface-mount package, measuring 3.10mm x 1.60mm with a height of 0.65mm. It has two terminations and is constructed using thick film technology, making it suitable for high voltage applications. The component is RoHS3 compliant and has an MSL of 1.
Its high voltage capability and precise electrical characteristics make it suitable for various consumer electronics and high voltage circuits. The 1206 package size allows for automated assembly on standard printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10 MΩ.
The tolerance is ±1%.
The power rating is 0.25W (1/4W).
The operating temperature range is -55°C to +155°C.
The package type is 1206 (3216 Metric).
The temperature coefficient is ±100ppm/°C.
