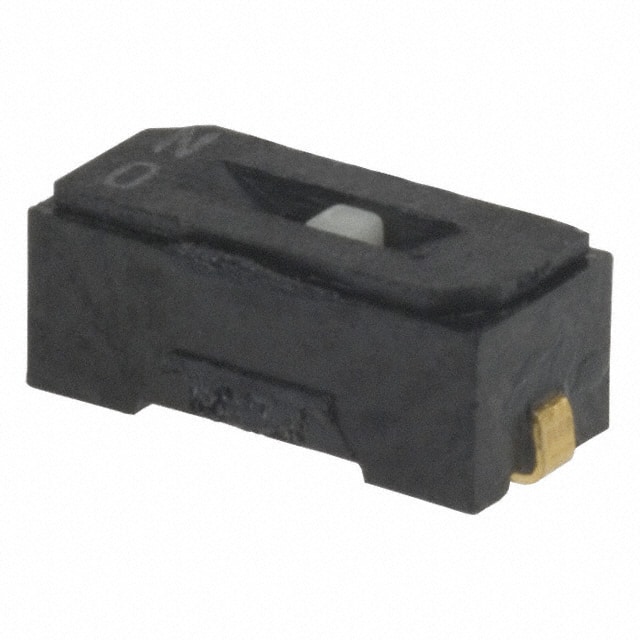

CHS-01TA The Nidec CHS-01TA is a Slide DIP Switch with SPST circuitry, rated for 6VDC and 100mA. It features a surface mount design with gold contact finish.
Mfr Part #:

CHS-01TA

Available from 2 distributors
Mfr Name: Nidec
Nidec
The Nidec CHS-01TA is a Slide DIP Switch with SPST circuitry, rated for 6VDC and 100mA. It features a surface mount design with gold contact finish.
✓ Total Stock: 395 pcs
$ Price Range: $0.75

CHS-01TA Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
393 pcs
On Request
393 pcs On Request 1 On Request On Request On Request On Request 2026-04-29 09:15:11
Emiteli ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CHS-01TA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Body Material
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Features
Height Above Board
Lead Style
Length
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination Style
Voltage Rating
Washable
View Similar Products (0)

CHS-01TA Description

Short technical summary and product information.

The Nidec CHS-01TA is a single-pole, single-throw (SPST) slide DIP switch designed for surface mount applications. It operates at a voltage rating of 6VDC and a current rating of 100mA, with gold-plated copper alloy contacts for reliable performance.



This switch features a pitch of 1.27mm (0.050") and a compact footprint with dimensions of 2.50mm (0.098") for both length and height above the board. The actuator type is a standard slide, with flush and recessed options available. It is designed to operate within an environmental temperature range of -40°C to 85°C.



The CHS-01TA is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. Its electrical life is rated for 2,000 cycles. The body material is Polyphenylene Sulfide (PPS), and it is washable, making it suitable for various assembly processes.



This DIP switch is part of the CHS series from Nidec, offering a reliable solution for circuit control and configuration in electronic devices.

CHS-01TA Quick Information

Product Type: DIP Switch
Series: CHS
Canonical Name: Nidec CHS-01TA DIP Switch
Subcategory: DIP Switch

CHS-01TA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CHS-01TA Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

CHS-01TA Features

  • Single Pole Single Throw (SPST) circuit.
  • Rated for 6VDC and 100mA operation.
  • Surface mount termination style.
  • Gold contact finish for reliability.
  • Compact 2.50mm height and length.

CHS-01TA Applications

  • Used for circuit configuration.
  • Suitable for board-level switching.
  • Ideal for automated assembly processes.
  • Applications requiring reliable signal control.

CHS-01TA FAQs

5 frequently asked questions generated from this part’s specifications.
What is the voltage rating for the Nidec CHS-01TA DIP switch?

The voltage rating for the CHS-01TA is 6VDC.

What is the current rating of the CHS-01TA slide switch?

The current rating is 100mA.

What is the operating temperature range for the CHS-01TA?

The operating temperature range is -40°C to 85°C.

What type of termination does the CHS-01TA use?

The CHS-01TA uses J Lead termination style for surface mounting.

What is the pitch of the Nidec CHS-01TA DIP switch?

The pitch is 1.27mm (0.050").
