| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Mounting Type | |
| Number of Circuits | |
| Tape & Reel | |
| Voltage |

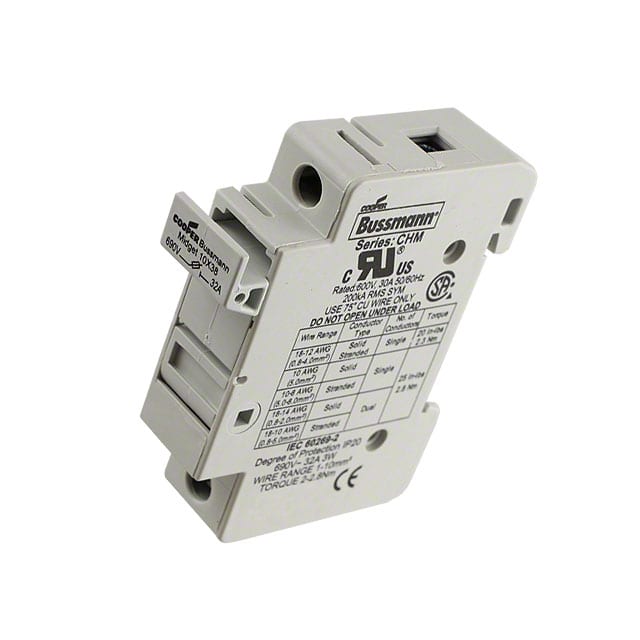

The CHM1DIU is a single-circuit cartridge fuseholder from Eaton - Electronics Division. It is rated for 30A continuous current and 600V AC/DC, making it suitable for industrial power distribution and protection applications. The holder accepts 5AG (also known as 13/32" x 1-1/2") midget fuses with dimensions 0.394" diameter by 1.496" length (10mm x 38mm). Mounting is via DIN rail, allowing easy installation in control panels. The holder is RoHS3 compliant and has an MSL of 1 (unlimited). It is designed for use with standard cartridge fuses in overcurrent protection circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $106.44 | $106.44 |
| 5+ | $94.99 | $94.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30A.
600V.
0.394" diameter x 1.496" length (10mm x 38mm), compatible with 5AG and 13/32" x 1-1/2" (Midget) fuses.
DIN Rail.
1 circuit.
Yes, RoHS3 compliant (unverified).
MSL 1 (unlimited).
