| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | NDC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

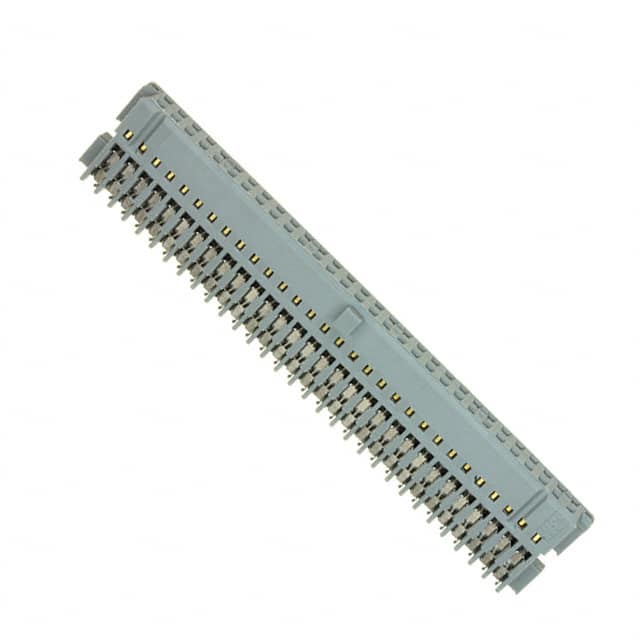

The CHG-2060-J01010-KCP is a 60-position IDC (Insulation Displacement Connector) receptacle manufactured by 3M Electronic Solutions. It is designed for free-hanging (in-line) mounting and accepts 26-28 AWG discrete or ribbon cable. The connector features a 2.54mm (0.100") pitch and 2.54mm row spacing, with two rows of female socket contacts. The contacts are gold-plated with a thickness of 30.0µin (0.76µm) for reliable signal integrity. The housing is gray and includes a closed end with polarizing key for correct orientation. This IDC termination style allows for quick and reliable cable assembly without stripping wire. Typical applications include internal wiring in electronic equipment, data communication systems, and industrial control panels. The connector is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited). Note: Compliance data is unverified and should be confirmed with the manufacturer.
| Qty | Low | High |
|---|---|---|
| 300+ | $9.01 | $9.01 |
| 500+ | $8.43 | $8.43 |
| 1,000+ | $7.73 | $7.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions.
2.54mm (0.100").
Free hanging (in-line).
26-28 AWG.
Gold, 30.0µin (0.76µm).
IDC (Insulation Displacement Connector).
Yes, it has a polarizing key and closed end.
