| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Wire Gauge | |
| Wire Type |

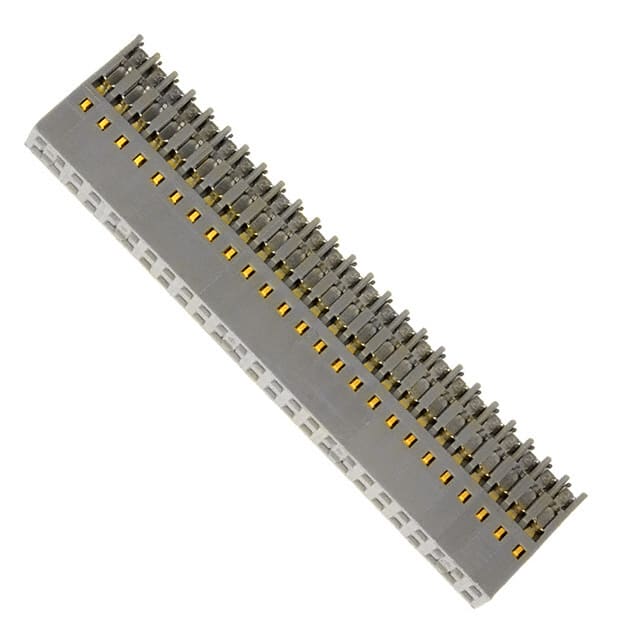

The 3M CHG-2050-001010-KEP is a 50-position IDC receptacle connector from the CHG series. It features two rows of female socket contacts on a standard 2.54mm (0.100 inch) pitch with a row spacing of 2.54mm. The connector is terminated via IDC (Insulation Displacement Connection) and accepts 22-24 AWG discrete or ribbon cable. The contacts are finished with 30 microinches of gold for reliable low-level signal and power connections.
The connector body is gray in color and features a closed end design. It is intended for free hanging (in-line) mounting, making it suitable for cable-to-cable or cable-to-board applications where a robust, multi-position interface is required. The closed end provides strain relief and prevents damage during insertion. The CHG series is known for its reliable IDC termination and compatibility with standard 0.100 inch pitch ribbon cable.
The pitch is 2.54mm (0.100 inches), with a row spacing of 0.100 inches (2.54mm).
This connector uses free hanging (in-line) mounting, suitable for cable-to-cable or cable-to-board applications without a panel mount.
It is designed for 22-24 AWG discrete or ribbon cable.
