| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

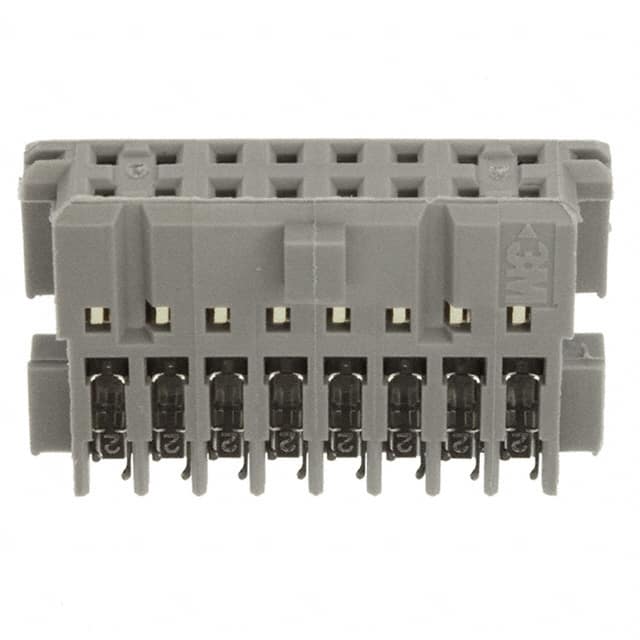

The 3M CHG-2016-J01010-KEP is a 16-position IDC receptacle connector designed for free hanging (in-line) applications. It features a 2.54mm (0.100") pitch and row spacing, making it compatible with standard ribbon cable and discrete wire terminations.
The connector utilizes female socket contacts with a 30.0µin (0.76µm) gold finish, ensuring reliable low-resistance connections. The IDC (Insulation Displacement Contact) termination style allows for quick and efficient wire termination without stripping, supporting 22-24 AWG wire gauge.
Design features include a closed end and polarizing key, which prevent mis-mating and ensure correct orientation during connection. The housing is gray in color and supports discrete wire or ribbon cable configurations. This connector is suitable for use in a variety of electronic interconnect applications requiring a compact and reliable rectangular connector interface.
The pitch is 2.54mm (0.100").
It has 16 positions arranged in 2 rows.
The mounting type is Free Hanging (In-Line).
It accepts 22-24 AWG wire.
The contact finish is gold with a thickness of 30.0µin (0.76µm).
