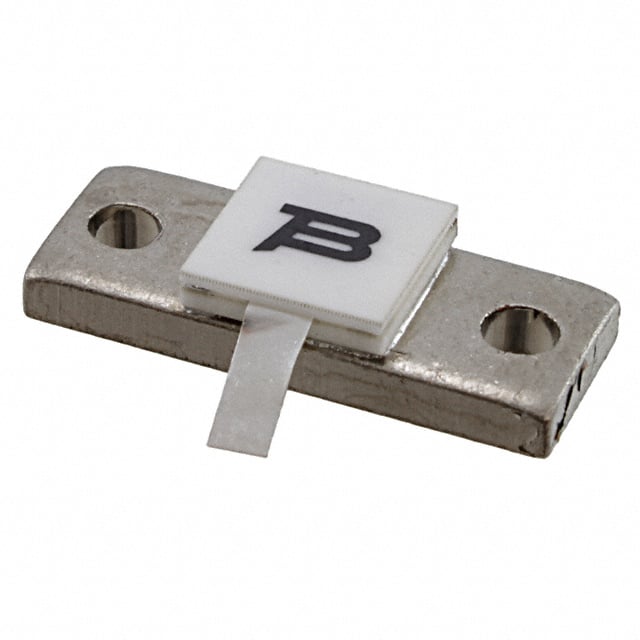

CHF9838CBF101R The Bourns CHF9838CBF101R is a 250W RF termination resistor with 100 Ohms resistance and a frequency range of DC to 3.0 GHz. It features a flange mount package.
Mfr Part #:

CHF9838CBF101R

Available from 1 distributors
Mfr Name: Bourns
Bourns
The Bourns CHF9838CBF101R is a 250W RF termination resistor with 100 Ohms resistance and a frequency range of DC to 3.0 GHz. It features a flange mount package.
✓ Total Stock: 6 pcs
$ Price Range: $27.44

CHF9838CBF101R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CHF9838CBF101R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Frequency
Function
Mounting Type
Power Rating
RF Type
Resistance
Substrate
Tolerance
VSWR
View Similar Products (0)

CHF9838CBF101R Description

Short technical summary and product information.

The Bourns CHF9838CBF101R is a high-power RF termination resistor designed for demanding applications. It offers a resistance value of 100 Ohms with a tight tolerance of ±5% and can handle up to 250W of power.



Operating across a wide frequency range from DC to 3.0 GHz, this component is suitable for high power RF transmission and power dividers/combiners. The resistor utilizes a Beryllium Oxide ceramic substrate and a thick film resistive element, ensuring reliable performance.



This termination resistor comes in a flange mount package, facilitating secure installation in various systems. The product is noted as obsolete and not recommended for new designs.

CHF9838CBF101R Quick Information

Product Type: RF Termination Resistor
Series: CHF
Canonical Name: Bourns CHF9838CBF101R RF Termination Resistor
Subcategory: RF

CHF9838CBF101R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CHF9838CBF101R Estimated Pricing

Qty Low High
1+ $27.44 $27.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

CHF9838CBF101R Features

  • 250W power rating for high power applications.
  • 100 Ohms resistance with ±5% tolerance.
  • Operates from DC to 3.0 GHz frequency.
  • Low VSWR of 1.25 maximum.
  • Flange mount package for secure installation.

CHF9838CBF101R Applications

  • Ideal for RF signal filtering circuits
  • Suitable for high-power RF applications
  • Used in power amplifier modules
  • Applicable in high-frequency impedance matching

CHF9838CBF101R FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the CHF9838CBF101R?

The resistance value is 100 Ohms.

What is the power rating of this resistor?

The maximum power rating is 250 Watts.

What is the tolerance of the resistance?

The tolerance is ±5%.

What substrate material is used in this resistor?

The substrate material is Beryllium Oxide (BeO).

What mounting type does this resistor use?

It uses a flange mount with a copper plated with nickel flange.

Is this resistor RoHS compliant?

RoHS3 compliance status is unverified.
