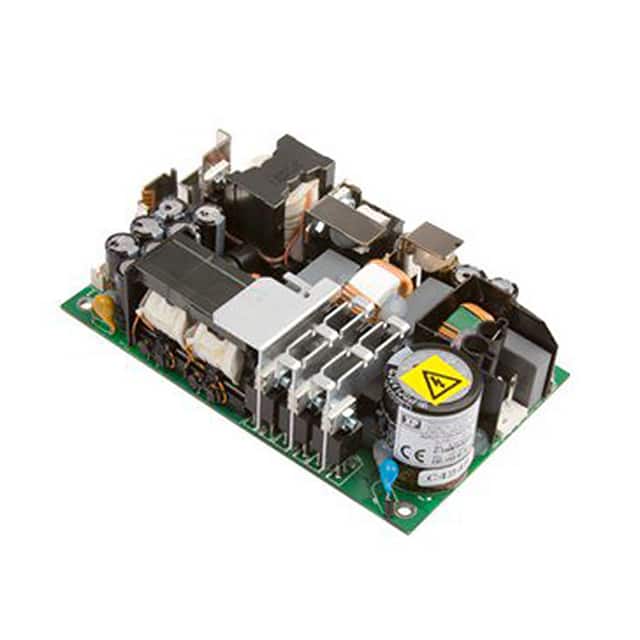

The XP Power CHD250PS24 is a 250W convection-cooled AC-DC power supply designed for IT and Medical applications. It operates with a universal input voltage range of 80 to 300 VAC and provides a single 24V output at 10.4A.
This open frame power supply is housed in an industry-standard 3" x 5" package, measuring 127.0mm x 76.2mm x 36.3mm. It features an efficiency of 94% and can operate within a temperature range of -20°C to +70°C with derating. Additional features include adjustable output, Power Factor Correction (PFC), remote on/off, and a standby output.
The CHD250PS24 is suitable for applications where fan cooling is not desirable, offering a reliable power solution for commercial and medical equipment. It meets safety standards including CB, CE, TUV, and UL, compliant with IEC 62368-1.
The output voltage is 24 VDC.
The maximum output current is 10.4 A.
The power rating is 250W.
The input voltage range is 80 to 300 VAC.
The operating temperature range is -20°C to +70°C with derating.
The dimensions are 127.0mm x 76.2mm x 36.3mm.
It has CB, CE, TUV, and UL approvals.
