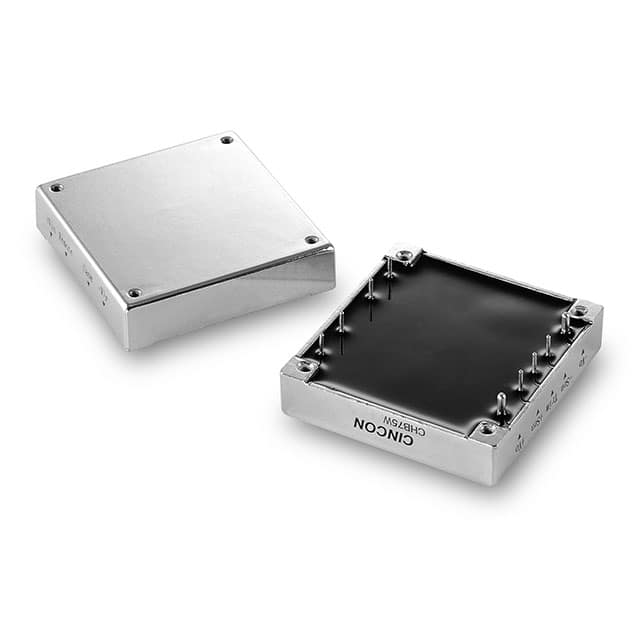

CHB75W-48S24 The Cincon CHB75W-48S24 is an isolated DC-DC converter module delivering 24V at 3.12A (75W) from an 18-75V input. It features 85% efficiency, 1500VDC isolation, and a half brick through-hole package.
Mfr Part #:

CHB75W-48S24

Available from 1 distributors
Mfr Name: Cincon Electronics Co. LTD
Cincon Electronics Co. LTD
The Cincon CHB75W-48S24 is an isolated DC-DC converter module delivering 24V at 3.12A (75W) from an 18-75V input. It features 85% efficiency, 1500VDC isolation, and a half brick through-hole package.
✓ Total Stock: 4 pcs

CHB75W-48S24 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CHB75W-48S24 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Control Features
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Current
Output Voltage
Package / Case
Power (Watts)
Standard Number
Storage Temperature
Supplier Device Package
Type
Voltage
Width
View Similar Products (0)

CHB75W-48S24 Description

Short technical summary and product information.

The Cincon CHB75W-48S24 is a high-performance isolated DC-DC converter from the CHB75W series, designed for industrial and commercial applications. It provides a regulated 24V output at 3.12A with a maximum power of 75W, operating from a wide 4:1 input voltage range of 18 to 75VDC (nominal 48V).



Key electrical specifications include an efficiency of 85%, a switching frequency of 300kHz, and 1500VDC input-to-output isolation. The module incorporates comprehensive protection features including overcurrent (OCP), overvoltage (OVP), overtemperature (OTP), short circuit (SCP), and under voltage lockout (UVLO). Remote on/off control with positive logic (enable, active high) is provided.



The converter is housed in a standard half brick package (61.0mm x 57.9mm x 12.7mm) with through-hole mounting. It operates over a temperature range of -40°C to +100°C (with derating) and is certified to UL60950-1, with CE and cURus approvals. The CHB75W-48S24 is suitable for ITE (commercial) equipment requiring a reliable, isolated 24V power rail.

CHB75W-48S24 Quick Information

Product Type: Isolated DC-DC Converter
Series: CHB75W
Canonical Name: Cincon CHB75W-48S24 Isolated DC-DC Converter, 24V Output, 75W
Subcategory: Board Mount Power Supplies

CHB75W-48S24 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CHB75W-48S24 Features

  • 85% typical efficiency at full load.
  • 1500VDC input/output isolation rating.
  • Wide 4:1 input range of 18-75VDC.
  • Half brick through-hole package.
  • Comprehensive protections: OCP, OVP, OTP, SCP, UVLO.

CHB75W-48S24 Applications

  • Industrial control and automation systems.
  • Telecommunications and networking equipment.
  • Distributed power architectures requiring isolated 24V rails.
  • Test and measurement instrumentation.

CHB75W-48S24 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the CHB75W-48S24?

The input voltage range is 18 to 75 VDC, with a nominal input of 48 VDC.

What output voltage and current does the CHB75W-48S24 provide?

It provides a single output of 24 VDC at 3.12 A, with a maximum power of 75 W.

What is the efficiency of the CHB75W-48S24?

The typical efficiency is 85% at nominal input and full load.

What is the operating temperature range of the CHB75W-48S24?

The operating temperature range is -40°C to +100°C with derating.

What package and mounting type does the CHB75W-48S24 use?

It uses a half brick package with through-hole mounting.

Is the CHB75W-48S24 RoHS compliant?

The part is listed as RoHS3 Compliant, but this is unverified.

What protection features does the CHB75W-48S24 include?

It includes overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), short circuit (SCP), and under voltage lockout (UVLO) protection.
