| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
125 pcs
|
125 pcs | On Request | 1 | On Request | On Request | 10+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

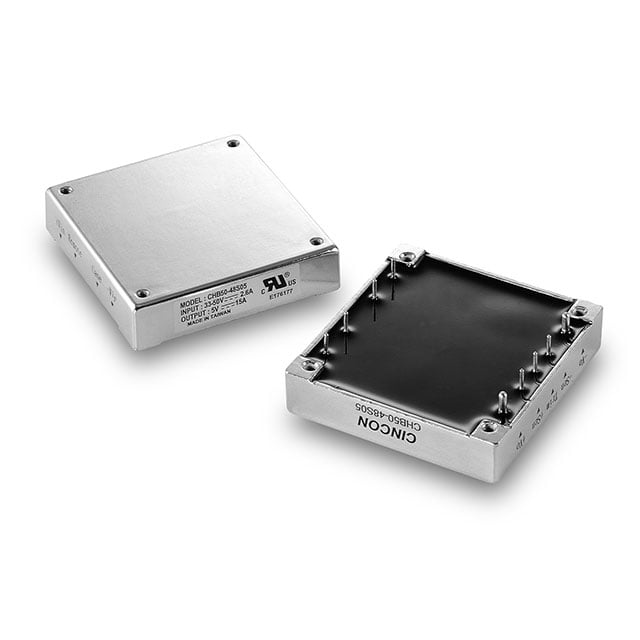

The Cincon CHB50-24S33 is an isolated DC-DC converter designed for commercial ITE applications. It operates from an 18 V to 36 V input (24V nominal) and delivers a regulated 3.3 V output at up to 10 A, providing 33 W of output power. The converter achieves a typical efficiency of 81% and offers 1500 V isolation.
This half brick module features through-hole mounting and measures 61.0 mm x 57.9 mm x 12.7 mm. It includes remote on/off control (active high) and comprehensive protection: overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), short circuit (SCP), and undervoltage lockout (UVLO). The operating temperature range is -40°C to +100°C with derating.
The converter is safety certified to IEC/UL 60950-1 and carries CE and cURus approvals. It is suitable for board-mounted power conversion in industrial, telecom, and networking equipment requiring a stable 3.3 V rail.
| Qty | Low | High |
|---|---|---|
| 1+ | $63.35 | $63.35 |
| 5+ | $62.79 | $62.79 |
| 10+ | $62.24 | $62.24 |
| 25+ | $60.34 | $60.34 |
| 50+ | $57.34 | $57.34 |
| 100+ | $43.28 | $43.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
18 V to 36 V (24V nominal).
Half Brick.
-40°C to 100°C (with derating).
The component is marked as RoHS3 Compliant in existing data, but this is unverified (low confidence).
81%.
