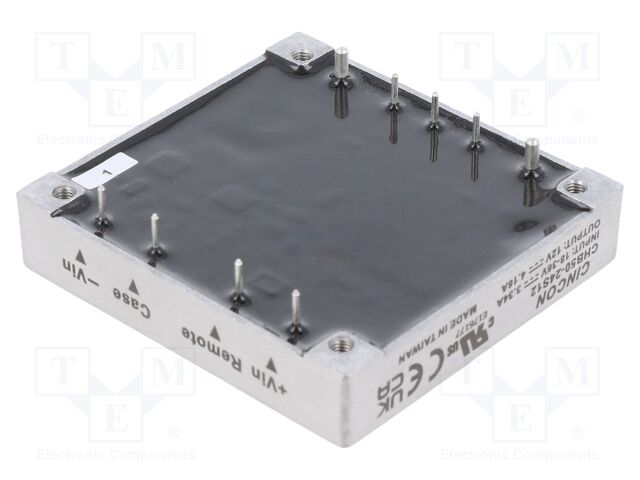

CHB50-24S12 Cincon CHB50-24S12 is an isolated DC-DC converter module delivering 12V at 4.16A (50W) from an 18V minimum input. Features remote on/off and full protection suite in a half brick through-hole package.
Mfr Part #:

CHB50-24S12

Available from 1 distributors
Mfr Name: Cincon Electronics Co. LTD
Cincon Electronics Co. LTD
Cincon CHB50-24S12 is an isolated DC-DC converter module delivering 12V at 4.16A (50W) from an 18V minimum input. Features remote on/off and full protection suite in a half brick through-hole package.
✓ Total Stock: 4 pcs
$ Price Range: $32.69 - $49.15

CHB50-24S12 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CHB50-24S12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Control Features
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Package / Case
Power (Watts)
Standard Number
Supplier Device Package
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

CHB50-24S12 Description

Short technical summary and product information.

The Cincon CHB50-24S12 is an isolated DC-DC converter providing a regulated 12V output at up to 4.16A (50W). It operates from a minimum input voltage of 18V and achieves 88% typical efficiency. The module includes comprehensive protection: overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), short-circuit (SCP), and undervoltage lockout (UVLO). Remote on/off control with an active-high enable simplifies system integration. The half brick package (61.0mm x 57.9mm x 12.7mm) uses through-hole mounting and supports a -40°C to +100°C operating range with derating. This module is designed for commercial ITE (Information Technology Equipment) applications and is certified to safety standard 60950-1 with CE and cURus approvals.

CHB50-24S12 Quick Information

Product Type: DC-DC Converter
Series: CHB50
Canonical Name: Cincon CHB50-24S12 Isolated DC-DC Converter, 12V 4.16A, Half Brick
Subcategory: DC-DC Converter Module

CHB50-24S12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CHB50-24S12 Estimated Pricing

Qty Low High
1+ $49.15 $49.15
5+ $48.77 $48.77
10+ $48.38 $48.38
25+ $46.85 $46.85
50+ $44.55 $44.55
100+ $41.47 $41.47
230+ $32.69 $32.69

Estimated market price range - modelled values for guidance only, not live distributor offers.

CHB50-24S12 Features

  • 12V nominal output at 4.16A current.
  • 88% typical efficiency rating.
  • Half brick through-hole package design.
  • Remote on/off with active-high control.

CHB50-24S12 Applications

  • Suitable for commercial ITE power supplies.
  • Use in distributed power architectures.
  • Efficient 50W board-mounted power conversion.

CHB50-24S12 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the CHB50-24S12?

The CHB50-24S12 provides a single 12V output with a maximum current of 4.16A, delivering 50W of power.

What protections are included on this converter?

It includes overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), short-circuit (SCP), and undervoltage lockout (UVLO) protection.

What is the operating temperature range?

The converter operates from -40°C to +100°C with derating.

What is the package type and mounting style?

It comes in a half brick package with through-hole mounting.
