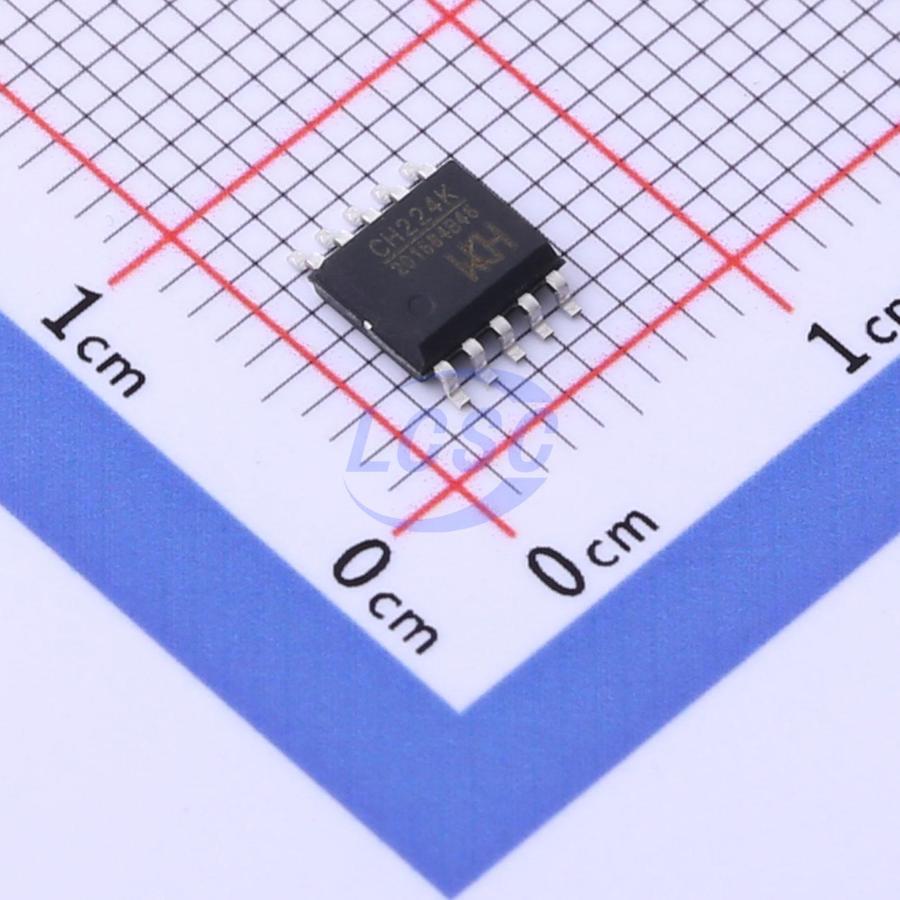

CH224K The WCH CH224K is a low-cost USB-PD Sink Controller designed for easy integration into products. It supports PD3.0/2.0 and BC1.2 fast charging protocols.
Mfr Part #:

CH224K

Available from 2 distributors
Mfr Name: WCH
WCH
The WCH CH224K is a low-cost USB-PD Sink Controller designed for easy integration into products. It supports PD3.0/2.0 and BC1.2 fast charging protocols.
✓ Total Stock: 12,612 pcs
$ Price Range: $0.26

CH224K Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,875 pcs
On Request
7875 pcs On Request 1 On Request On Request 21+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
4,737 pcs
On Request
4737 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CH224K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Industrial Grade
Input Voltage
Lead Spacing
Medical Grade
Military Grade
Output Current
Output Voltage
Power
Protection Features
Tape & Reel
View Similar Products (0)

CH224K Description

Short technical summary and product information.

The WCH CH224K is a cost-effective USB Power Delivery (PD) Sink Controller that simplifies the integration of USB PD functionality into electronic devices. It is designed to communicate with PD sources, such as chargers, to negotiate power output up to 20V and 5A, supporting a maximum power of 100W.



This controller is compliant with PD3.0/2.0 and BC1.2 fast charging protocols. It automatically detects VCONN and analog E-Mark chips, facilitating seamless power negotiation. Key features include built-in PD communication, output voltage detection, over-temperature protection, and over-voltage protection, ensuring safe and reliable operation.



The CH224K offers flexible configuration options, allowing it to be used in stand-alone mode without a co-processor. The output voltage can be programmed using configuration pins, either with a single pin for simpler applications or with three pins for more control, which can also be managed by a microcontroller.



Applications for the CH224K include wireless chargers, laptop charging cables, small appliances, lithium battery packs, electric tools, and mobile power banks, making it a versatile component for modern power solutions.

CH224K Quick Information

Product Type: USB-PD Sink Controller
Canonical Name: CH224K USB-PD Sink Controller
Subcategory: USB Power Delivery Controller

CH224K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CH224K Estimated Pricing

Qty Low High
1+ $0.26 $0.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

CH224K Features

  • Supports USB PD3.0/2.0 and BC1.2 fast charging.
  • Negotiates power up to 20V and 5A.
  • Maximum power handling of 100W.
  • Built-in over-voltage and over-temperature protection.
  • Flexible configuration for stand-alone use.

CH224K Applications

  • Ideal for wireless chargers.
  • Suitable for laptop charging cables.
  • Used in small battery-powered appliances.
  • Applicable for electric tools.
  • Powers mobile power banks.

CH224K FAQs

5 frequently asked questions generated from this part’s specifications.
What fast charging protocols does the CH224K support?

The CH224K supports PD3.0/2.0, BC1.2, and other boost fast charging protocols.

What is the maximum output power of the CH224K?

The CH224K can handle a maximum power of 100W.

What are the input voltage limits for the CH224K?

The CH224K supports an input voltage range from 4V to 22V.

What protection features are included in the CH224K?

The CH224K includes built-in over-voltage and over-temperature protection modules.

Can the CH224K be used in a stand-alone mode?

Yes, the CH224K can be used in stand-alone mode without any co-processor.
