| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
89,300 pcs
|
89300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
544 pcs
|
544 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Current | |
| Current - Average Rectified (Io) | |
| Diode Type | |
| Forward Voltage (Vf) (Max) @ If | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature - Junction | |
| Package / Case | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage | |
| Voltage - DC Reverse (Vr) (Max) |
The CGRM4004-G is a standard recovery rectifier diode from Comchip Technology, designed for general-purpose rectification in low-power applications. It features a maximum reverse voltage of 400V and an average rectified current rating of 1A.
Electrical characteristics include a maximum forward voltage of 1.1V at 1A forward current and a standard recovery speed greater than 500ns. The device has a junction capacitance of 15pF at 4V reverse bias and 1MHz, and can operate over a junction temperature range of -55°C to 150°C.

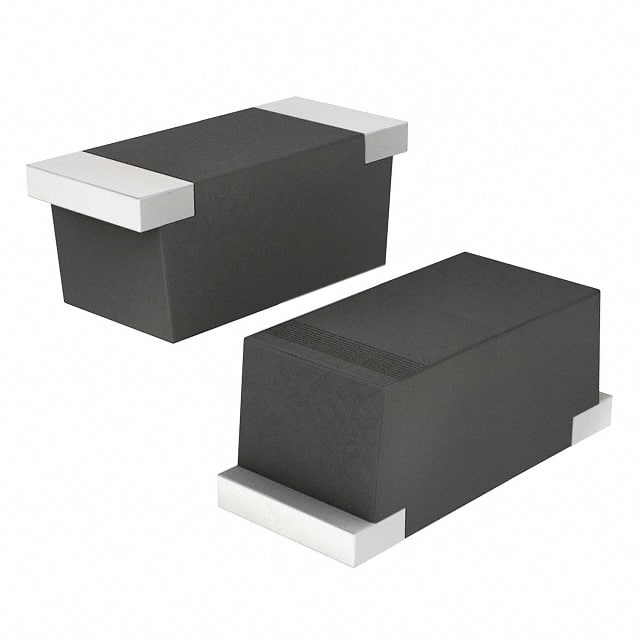

The diode is supplied in a surface-mount SOD-123T package (also known as Mini SMA/SOD-123), making it suitable for compact PCB designs. It is RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 2,500+ | $0.02 | $0.02 |
| 5,000+ | $0.02 | $0.02 |
| 12,500+ | $0.02 | $0.02 |
| 25,000+ | $0.02 | $0.02 |
| 62,500+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage (Vr) is 400V.
The average rectified current (Io) is 1A.
The maximum forward voltage is 1.1V at a forward current of 1A.
It is a standard recovery diode with recovery time greater than 500ns at 200mA.
It is available in a surface-mount SOD-123T package, also known as Mini SMA/SOD-123.
The junction operating temperature range is -55°C to 150°C.
Yes, it is listed as RoHS3 compliant.
