| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Features | |
| Inner Diameter | |
| Inner Diameter - Supplied | |
| Length | |
| Material | |
| Operating Temperature | |
| Operating Temperature Range | |
| Recovered Wall Thickness | |
| Shelf Life | |
| Shrink Ratio | |
| Shrink Temperature | |
| Shrinkage Ratio | |
| Storage | |
| Storage Temperature Range | |
| Type |

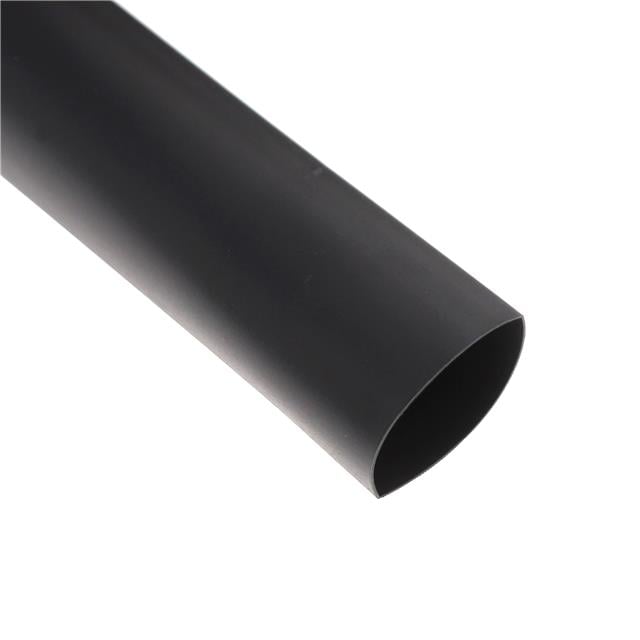

The CGPT-9/3-0-SP is a flexible heat shrink tubing manufactured by TE Connectivity (Raychem). It is made from polyolefin material and features a 3:1 shrink ratio, allowing it to tightly conform to irregular shapes and provide reliable insulation and protection.
Key specifications include a supplied inner diameter of 2.99mm (0.118 inches) and a recovered wall thickness of 0.76mm (0.030 inches). The tubing operates over a temperature range of -40°C to 135°C and begins shrinking at 80°C. It is rated for a shelf life of 144 months when stored between 0°C and 35°C.
The tubing is black in color and offers chemical resistance, flame retardancy, and solvent resistance. It is RoHS3 compliant and REACH unaffected. This product is suitable for a variety of cable and wire management applications requiring durable environmental protection.
The shrink ratio is 3:1.
-40°C to 135°C.
Polyolefin (PO).
2.99mm (0.118 inches).
Yes, it is RoHS3 compliant.
144 months when stored at 0°C to 35°C.
