| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,800 pcs
|
1800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Features | |
| Inner Diameter | |
| Length | |
| Material | |
| Operating Temperature | |
| Operating Temperature Range | |
| Recovered Wall Thickness | |
| Shelf Life | |
| Shrink Temperature | |
| Shrinkage Ratio | |
| Storage | |
| Storage Conditions | |
| Type |

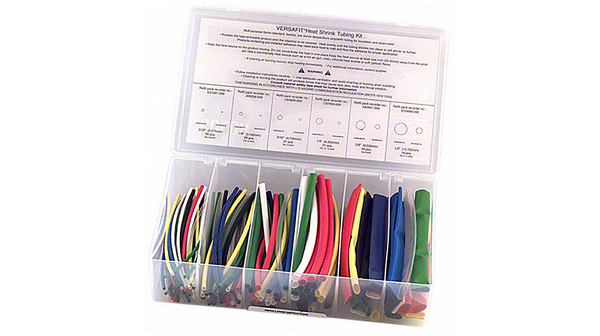

The CGPT-4.8/2.4-0-SP is a flexible heat shrink tubing manufactured by TE Connectivity (Raychem). It is made from polyolefin (PO) material and features a 2:1 shrink ratio, meaning it shrinks to half its original diameter when heated to 80°C. The tubing has an initial inner diameter of 0.093" (2.36mm) and a recovered wall thickness of 0.019" (0.48mm).
This tubing is designed for general-purpose insulation, strain relief, and mechanical protection of wires and cables. It is rated for continuous operation from -40°C to 135°C, making it suitable for a wide range of environments. The black color provides UV resistance and a professional appearance.
The tubing is chemically resistant, flame retardant, and solvent resistant, ensuring reliable performance in demanding applications. It has a shelf life of 144 months when stored under recommended conditions (32°F ~ 95°F / 0°C ~ 35°C). The product is sold per meter, with the length specified at order.
The inner diameter before shrinking is 0.093" (2.36mm).
The shrink ratio is 2:1.
The operating temperature range is -40°C to 135°C.
The tubing is made of polyolefin (PO).
Yes, it is listed as RoHS3 Compliant.
The shrink temperature is 80°C.
The recovered wall thickness is 0.019" (0.48mm).
