| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
97 pcs
|
97 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit | |
| Frequency Range | |
| Impedance | |
| Insertion Loss | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Supplier Device Package | |
| Test Frequency | |
| Voltage |
The CG2179M2 from CEL is a pHEMT GaAs SPDT RF switch capable of operating across a frequency range of 0.05 GHz to 3.0 GHz. This device is designed for applications requiring low insertion loss and high isolation.
Key electrical characteristics include a typical insertion loss of 0.30 dB at 0.05-0.5 GHz and a typical isolation of 39 dB at the same frequency range. The switch handles power up to +32 dBm typical at 3.0 GHz. It operates with control voltages between 1.8 V to 5.3 V (high) and -0.2 V to 0.2 V (low).

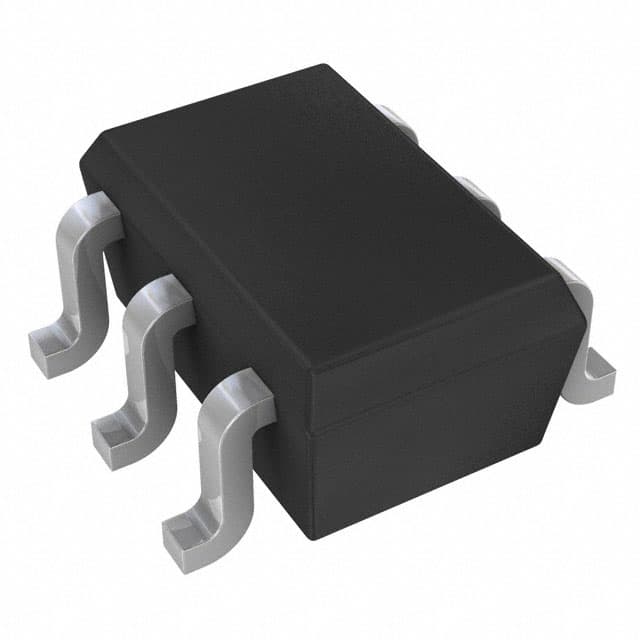

The CG2179M2 is housed in a compact 6-pin mini-mold (6-SMD) surface-mount package, measuring 2.0mm x 1.25mm x 0.9mm. It is rated for an operating temperature range of -45°C to +85°C and has an impedance of 50 Ohms. This switch is suitable for applications such as Wireless LAN (IEEE 802.11 b/g/n/ac).
Compliance information indicates RoHS3 compliance and a Moisture Sensitivity Level (MSL) of 1. The REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CG2179M2 operates from 50 MHz to 3 GHz.
The typical insertion loss is 0.30 dB at 0.05 to 0.5 GHz.
The typical isolation is 39 dB at 0.05 to 0.5 GHz.
The CG2179M2 is available in a 6-SMD (6-Minimold) package.
The operating temperature range is -45°C to +85°C.
The CG2179M2 is RoHS3 Compliant.
