| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | 1917 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit | |
| Frequency Range | |
| IIP3 | |
| Impedance | |
| Insertion Loss | |
| Isolation | |
| Operating Temperature | |
| Operating Voltage | |
| RF Type | |
| Supplier Device Package | |
| Test Frequency | |
| Voltage |

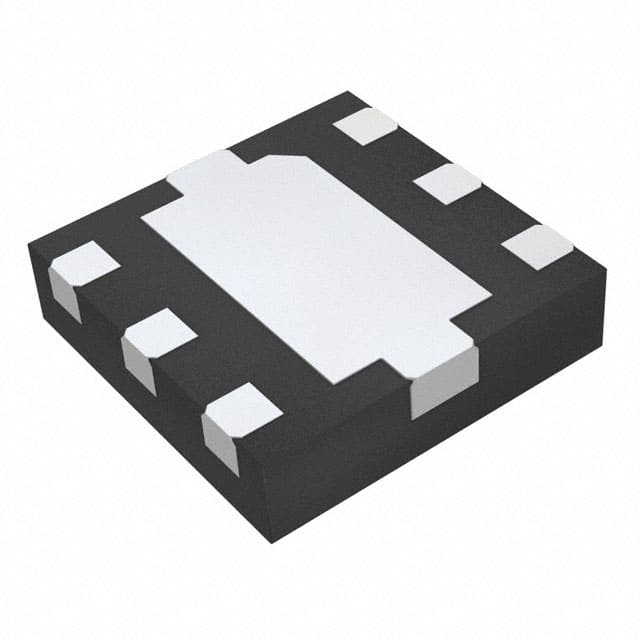

The CEL CG2164X3-C2 is a GaAs MMIC DPDT (Double Pole Double Throw) switch suitable for dual-band wireless LAN applications, supporting IEEE802.11a/b/g/n/ac standards. It operates within a frequency range of 2.4 GHz to 6 GHz, with a typical insertion loss of 0.50 dB at 2.5 GHz and 0.60 dB at 6.0 GHz. The switch offers a high isolation of 23 dB at 2.5 GHz and 15 dB at 6.0 GHz.
This component requires a control voltage between 1.8 V and 5.0 V. It is housed in a 6-pin TSON package with an exposed pad, measuring 1.5mm x 1.5mm x 0.37mm. The operating temperature range is -45°C to +85°C. The CG2164X3-C2 is designed for applications requiring efficient RF signal switching in wireless communication systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CG2164X3-C2 operates from 0.05 GHz to 6.0 GHz.
The typical insertion loss at 2.5 GHz is 0.50 dB.
The typical isolation at 2.5 GHz is 23 dB.
The control voltage ranges from 1.8 V to 5.0 V.
The operating temperature range is -45°C to +85°C.
The CG2164X3-C2 is supplied in a 6-TSON package.
