| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
896 pcs
|
896 pcs | On Request | 1 | On Request | On Request | 1216 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Material | |
| Actuator Type | |
| Circuit | |
| Color | |
| Contact Material | |
| Contact Rating (Nominal @ 125 VAC) | |
| Contact Rating (Nominal @ 250 VAC) | |
| Current Rating (Amps) | |
| Dielectric Strength | |
| Electrical Life | |
| Housing Material | |
| Illumination Type, Color | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Terminal Material | |
| Termination Style | |
| Voltage Rating |

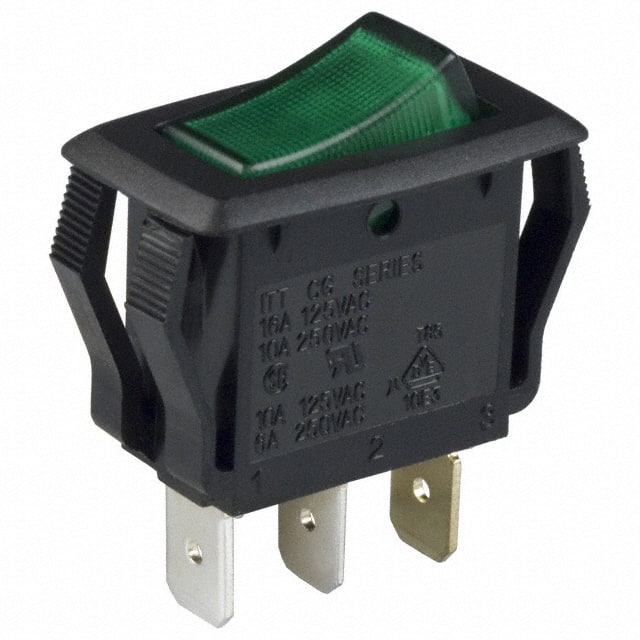

This C&K Components CG Series rocker switch, part number CG102J3GS205QF7, is designed for panel mounting with a snap-in style.
It offers a single pole, single throw (SPST) configuration with an On-Off function. The switch is rated for 16 Amps at 125 VAC and 10 Amps at 250 VAC, with an electrical life of 10,000 cycles at full load. The operating temperature range is -20°C to +85°C.
The actuator is a concave, illuminated type in green, with a nominal illumination voltage of 125 VAC. The housing and actuator are constructed from 6/6 nylon (UL94V-2) and polycarbonate, respectively. Terminals and contacts are silver-plated copper alloy.
Typical applications include computers and peripherals, small appliances, instrument panels, and industrial controls. The switch features a .250" (6.3mm) quick connect termination style and requires a panel cutout of approximately 27.80mm x 13.80mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 125 VAC.
The switch is rated for 16A at 125VAC and 10A at 250VAC.
The operating temperature range is -20°C to +85°C.
This component is RoHS3 Compliant.
