CFS206-32.768KDZBB 32.768 kHz tuning fork crystal with 6pF load capacitance, ±20ppm frequency tolerance, and 35 kΩ ESR. Through hole cylindrical can package.
Mfr Part #:

CFS206-32.768KDZBB

Available from 1 distributors
Mfr Name: Citizen Finedevice
Citizen Finedevice
32.768 kHz tuning fork crystal with 6pF load capacitance, ±20ppm frequency tolerance, and 35 kΩ ESR. Through hole cylindrical can package.
✓ Total Stock: 30 pcs

CFS206-32.768KDZBB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CFS206-32.768KDZBB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Diameter
ESR (Equivalent Series Resistance)
Frequency
Frequency Tolerance
Height
Lead Style
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
Operating Temperature Range
Package / Case
Storage Temperature
Temperature Coefficient
Type
View Similar Products (0)

CFS206-32.768KDZBB Description

Short technical summary and product information.

This is a 32.768 kHz tuning fork crystal from Citizen Finedevice, part of the CFS-206 series. It operates in fundamental mode with a load capacitance of 6 pF. The frequency tolerance is ±20 ppm at 25°C, and the equivalent series resistance is 35 kΩ maximum.



The crystal is designed for low-power applications such as real-time clocks, watches, and consumer electronics. It has a drive level of 1 μW maximum and an aging rate of ±3 ppm in the first year. The temperature coefficient is -0.034 ppm/°C², with a turnover temperature of 25°C.

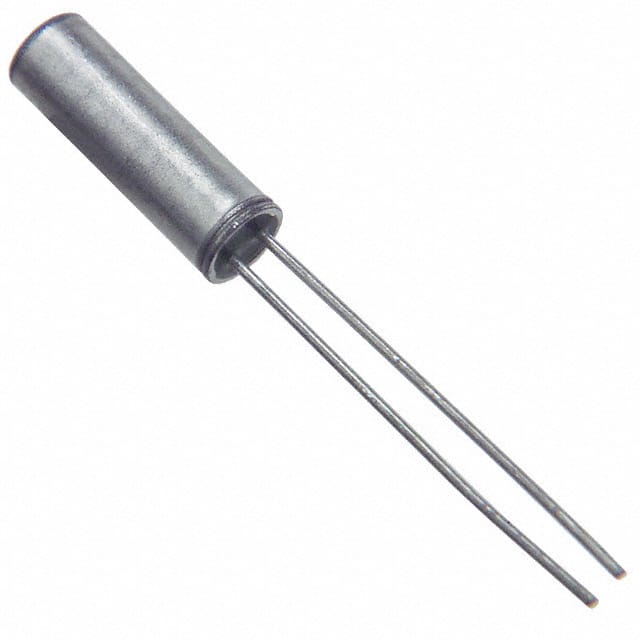

The package is a cylindrical can with radial leads, through hole mounting. Dimensions are 1.9 mm diameter and 6.2 mm height. Operating temperature range is -20°C to 70°C, storage -40°C to 85°C. RoHS compliant.

CFS206-32.768KDZBB Quick Information

Product Type: Crystal
Series: CFS-206
Canonical Name: 32.768 kHz Tuning Fork Crystal, 6pF Load, Through Hole
Subcategory: kHz Crystal (Tuning Fork)

CFS206-32.768KDZBB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

CFS206-32.768KDZBB Features

  • 32.768 kHz tuning fork crystal.
  • 6 pF load capacitance rating.
  • ±20 ppm frequency tolerance at 25°C.
  • 35 kΩ maximum equivalent series resistance.
  • Through hole cylindrical can package.

CFS206-32.768KDZBB Applications

  • Used in real-time clock circuits.
  • Ideal for wristwatch timing applications.
  • Suitable for security device timing.
  • Common in consumer electronics timing.

CFS206-32.768KDZBB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type of this crystal?

Cylindrical Can, Radial with through hole mounting.

What is the operating temperature range?

-20°C to 70°C.

Is this crystal RoHS compliant?

Yes, RoHS3 compliant per datasheet.

What is the frequency of this crystal?

32.768 kHz.

What load capacitance is required?

6 pF.

What is the equivalent series resistance?

35 kΩ maximum.

What is the frequency tolerance?

±20 ppm at 25°C.
