| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,125 pcs
|
5125 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,110 pcs
|
5110 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Rating | |
| Resistance | |
| SVHC Present | |
| Storage Temperature | |
| Tolerance | |
| Working Voltage |

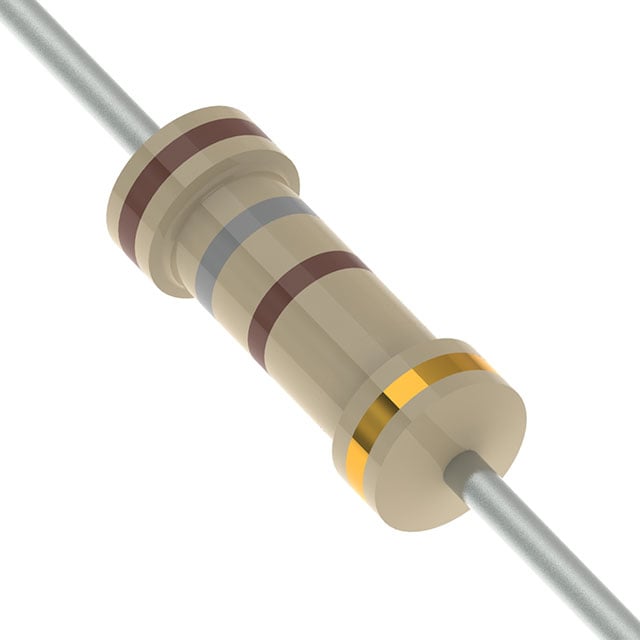

The Yageo CFR-25JR-52-180R is a 0.25 Watt carbon film resistor from the CFR-25 series, engineered for high reliability and cost-effectiveness. It features a homogeneous carbon layer vacuum-sputtered onto ceramic rods, providing stable performance and low noise.
This axial-leaded component offers a resistance value of 180 Ohms with a tolerance of 5%. It has a maximum working voltage of 250V and can handle stable power at 70°C ambient, with a full operating range up to 155°C. The resistor is protected by multiple layers of flame-retardant lacquer.
With a body length of 3.3mm and a diameter of 1.9mm, the CFR-25JR-52-180R offers a miniature power density, delivering 0.25W in a compact through-hole package. Its carbon film structure provides superior pulse-withstanding capability compared to metal film resistors, making it suitable for protecting sensitive semiconductor gates and handling small inrush currents.
This resistor is identified by a 4-band EIA color coding system for ease of use in automated insertion and manual prototyping. It is constructed with lead-free materials and is RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 180 Ohms.
The tolerance is 5%.
The power rating is 0.25W at 70°C ambient.
The maximum working voltage is 250V.
The operating temperature range is -55°C to 155°C.
The body dimensions are 3.3mm in length and 1.9mm in diameter.
