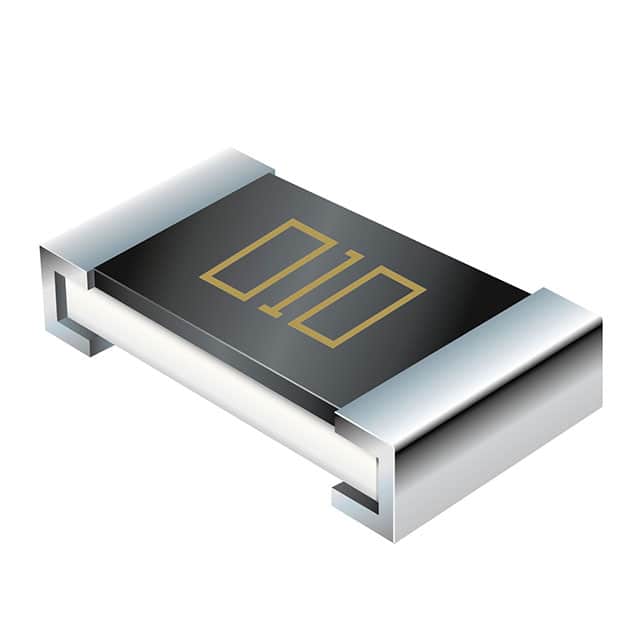

CFN0805-FX-R005ELF The Bourns CFN0805-FX-R005ELF is a surface mount chip resistor with a resistance of 0.005 Ohms and a tolerance of ±1%. It has a power rating of 0.75W.
Mfr Part #:

CFN0805-FX-R005ELF

Available from 1 distributors
Mfr Name: Bourns
Bourns
The Bourns CFN0805-FX-R005ELF is a surface mount chip resistor with a resistance of 0.005 Ohms and a tolerance of ±1%. It has a power rating of 0.75W.
✓ Total Stock: 81 pcs
$ Price Range: $0.05

CFN0805-FX-R005ELF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
81 pcs
On Request
81 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CFN0805-FX-R005ELF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Supplier Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

CFN0805-FX-R005ELF Description

Short technical summary and product information.

This Bourns CFN0805-FX-R005ELF is a surface mount chip resistor designed for various electronic applications. It features a low resistance value of 0.005 Ohms with a tight tolerance of ±1%, making it suitable for precise current sensing applications.



The resistor has a power rating of 0.75W and a wide operating temperature range from -55°C to 155°C. Its construction is based on Metal Foil technology, ensuring stability and reliability.



The component is housed in an 0805 (2012 Metric) package, with dimensions of 2.00mm in length and 1.25mm in width. It has two terminations and is designed for surface mounting.



Key electrical characteristics include a temperature coefficient of ±100ppm/°C. The part also features moisture resistance.

CFN0805-FX-R005ELF Quick Information

Product Type: Chip Resistor - Surface Mount
Canonical Name: Bourns CFN0805-FX-R005ELF Surface Mount Resistor
Subcategory: Chip Resistor - Surface Mount

CFN0805-FX-R005ELF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CFN0805-FX-R005ELF Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CFN0805-FX-R005ELF Features

  • 0.005 Ohm resistance with ±1% tolerance.
  • 0.75W power rating for demanding applications.
  • Wide operating temperature range of -55°C to 155°C.
  • Metal Foil composition for stability.
  • 0805 package size for surface mounting.

CFN0805-FX-R005ELF Applications

  • Ideal for current sensing circuits.
  • Suitable for high-reliability applications.
  • Used in compact electronic designs.
  • General purpose surface mount resistor.

CFN0805-FX-R005ELF FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the CFN0805-FX-R005ELF resistor?

The resistance value is 0.005 Ohms.

What is the tolerance of the CFN0805-FX-R005ELF resistor?

The tolerance is ±1%.

What is the power rating of the CFN0805-FX-R005ELF resistor?

The power rating is 0.75W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 155°C.

What is the package type for the CFN0805-FX-R005ELF?

The package type is 0805 (2012 Metric).
