| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

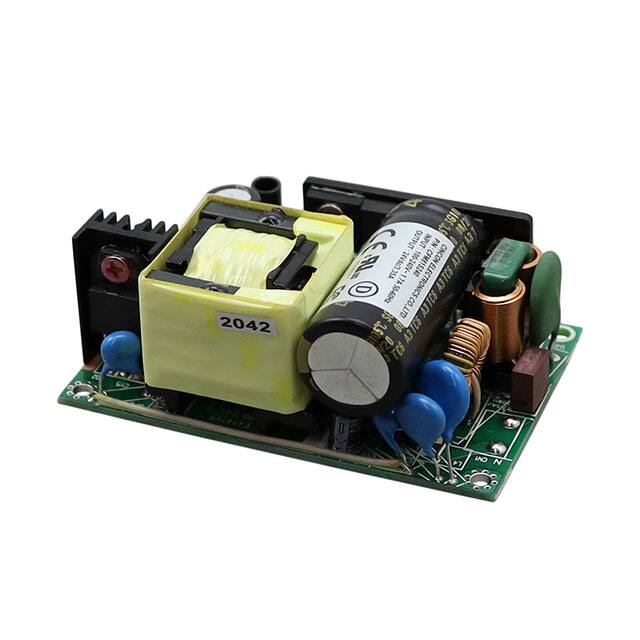

The Cincon CFM81S240-P is an 80-watt open frame AC-DC power supply module designed for various applications. It offers a universal input voltage range of 90-264 VAC, making it suitable for global use. The module provides a single 24VDC output with a maximum current of 3.35A.
Key electrical specifications include a high efficiency of up to 90% at 230 VAC and full load, and a low no-load power consumption of less than 0.3W. It features continuous short circuit protection and a peak load capability of up to two times the rated current for short durations.
Designed for easy integration, this converter has a compact 2"x3" footprint and a chassis mount type. The operating temperature range is -30°C to 85°C with derating. Safety approvals include IEC/EN/UL 62368-1 and it meets EN55032 Class B and CISPR/FCC Class B standards.
This AC-DC converter is suitable for applications in household appliances and ITE (Commercial) equipment, offering reliable power conversion in a versatile open frame package.
90-264 VAC.
-30°C to 85°C with derating.
Chassis mount open frame.
24 VDC.
3.35 A.
90% typical at 230VAC full load.
3 kV.
