| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

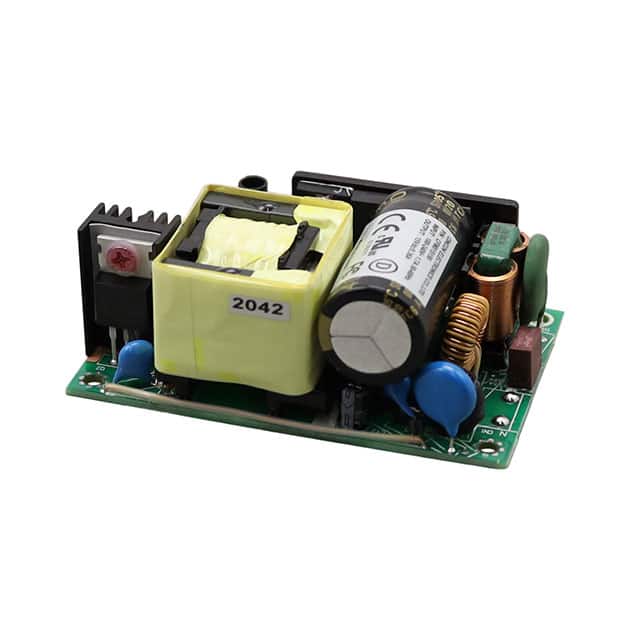

The Cincon CFM81S150-P is an 80-watt open frame AC-DC power module designed for various applications. It operates with a universal input voltage range of 90-264 VAC, providing flexibility in global use.
This converter delivers a nominal output voltage of 15V at 5.36A, with a power rating of 80W. Key electrical specifications include an efficiency of up to 89% at full load and 230 VAC, adjustable output voltage within a range of 14.25-15.75V, and ±0.5% line regulation and ±1% load regulation.
Designed for reliability, it features continuous short circuit protection and a peak load capability of up to two times the rated current for short durations. The operating temperature range is -30°C to 85°C with derating.
The module has a compact footprint with dimensions of 76.2mm x 56.4mm x 34.0mm. It is suitable for chassis mounting and meets safety standards including IEC/EN/UL 62368-1 and EN60335-1. It also complies with EN55032 Class B and CISPR/FCC Class B for emissions.
The nominal output voltage is 15 VDC.
The maximum output current is 5.36 A.
The power rating is 80W.
The typical efficiency is 89% at 230 VAC and full load.
The operating temperature range is -30°C to 85°C with derating.
It is designed for chassis mounting.
