| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

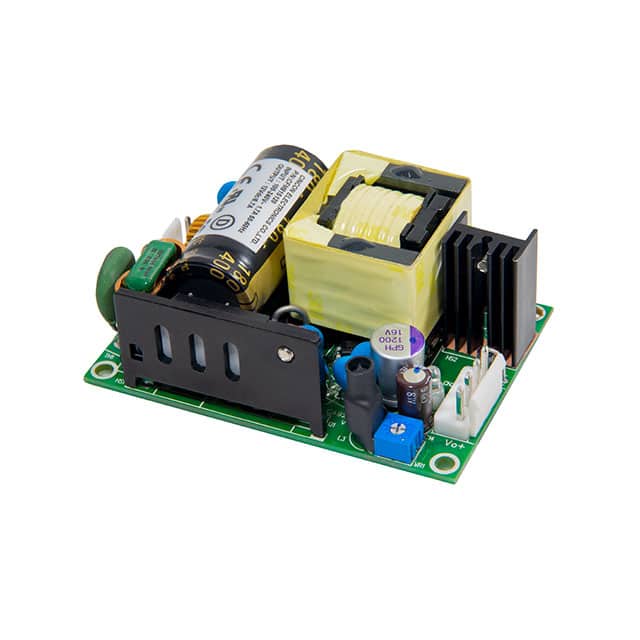

The Cincon CFM81S120 is an 80-watt open frame AC-DC power supply module designed for versatile applications. It features a universal input voltage range of 90-264 VAC, making it suitable for global use.
This converter provides a nominal output voltage of 12V DC with a maximum output current of 6.7A. It boasts a high efficiency of up to 89% at full load and 25°C, along with a low no-load power consumption of less than 0.3W. The CFM81S120 includes continuous short circuit protection and a peak load capability of up to two times the rated current for short durations.
Designed for chassis mounting, this open frame module measures 76.2mm x 56.4mm x 34.0mm. It operates within a wide temperature range of -30°C to 85°C with derating and meets safety standards including IEC/EN/UL 62368-1 and EN60335-1. Its applications include household appliances and ITE (Commercial) equipment.
The CFM81S120 has a nominal output voltage of 12V DC.
The maximum output current for the CFM81S120 is 6.7A.
The CFM81S120 has a power rating of 80W.
The typical efficiency of the CFM81S120 is 89% at 230 VAC and full load.
The operating temperature range is -30°C to 85°C with derating.
Yes, the CFM81S120 features continuous short circuit protection.
The dimensions are 76.2mm (Length) x 56.4mm (Width) x 34.0mm (Height).
