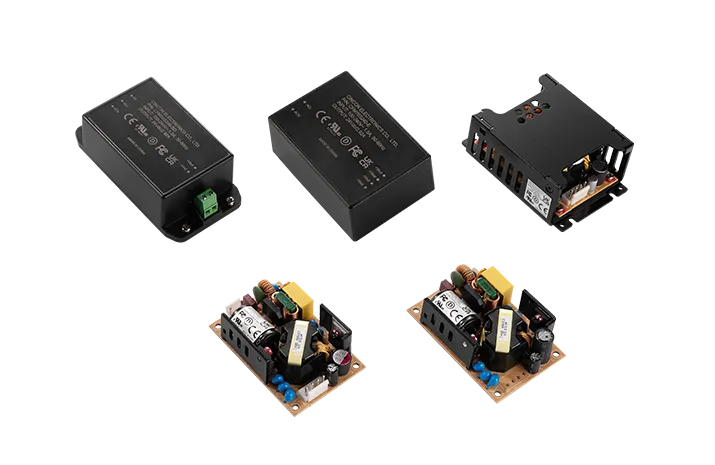

The Cincon CFM70S120-P is a 70-watt AC-DC power supply designed with an open frame construction. It operates with a universal input voltage range of 90 to 264 VAC or 120 to 370 VDC, making it suitable for various global applications.
This power supply delivers a single 12V output at 5.8A, with a high efficiency rating of 90%. It is designed for through-hole mounting and measures 76.2mm x 50.8mm x 29.0mm. The operating temperature range is -30°C to 80°C with derating.
Key features include universal input and compliance with standards such as IEC/EN 60335-1 and IEC/EN 62368-1. It is approved by CE, cURus, and FCC. The CFM70S120-P is suitable for applications in household appliances and ITE commercial equipment. It operates at altitudes up to 5000m.
The CFM70S120-P provides a single 12V output at 5.8A.
The input voltage range is 90 to 264 VAC or 120 to 370 VDC.
The operating temperature range is -30°C to 80°C with derating.
The package is a 6-DIP through-hole module.
It complies with standards 60335-1 and 62368-1.
The typical efficiency is 90%.
