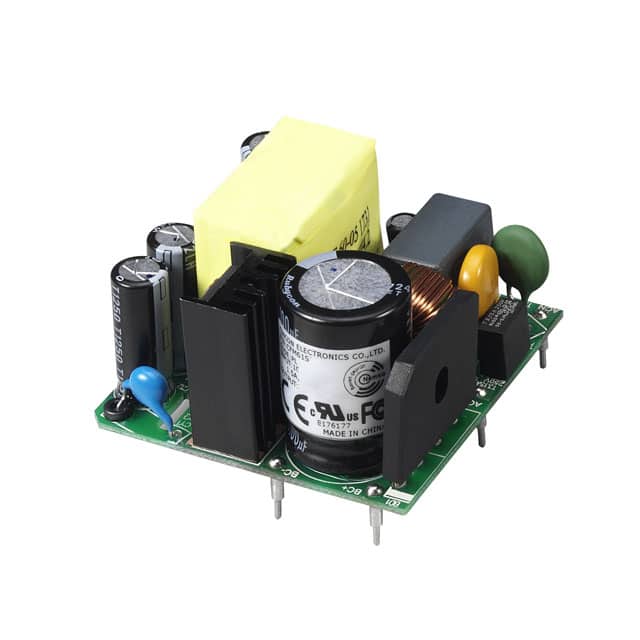

The Cincon Electronics CFM61S120 is an open-frame AC/DC converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 90 to 264 VAC and provides a stable 12VDC output at 5A, delivering a total power of 60W.
This converter boasts an efficiency of 88% and features universal input, making it suitable for various global power requirements. It is designed for through-hole mounting and comes in a 6-DIP module package.
The operating temperature range is -30°C to 70°C with derating. The dimensions are 50.8mm in length, 50.8mm in width, and 34.2mm in height.
Compliance is indicated by CE, cURus, FCC, and Nemko approvals, adhering to standard 62368-1. The RoHS status is RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is Unaffected.
The CFM61S120 provides a 12VDC output.
The maximum output current is 5A.
The power rating is 60W.
The input voltage range is 90 to 264 VAC.
The operating temperature range is -30°C to 70°C with derating.
It uses through-hole mounting.
The dimensions are 50.8mm in length, 50.8mm in width, and 34.2mm in height.
