| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

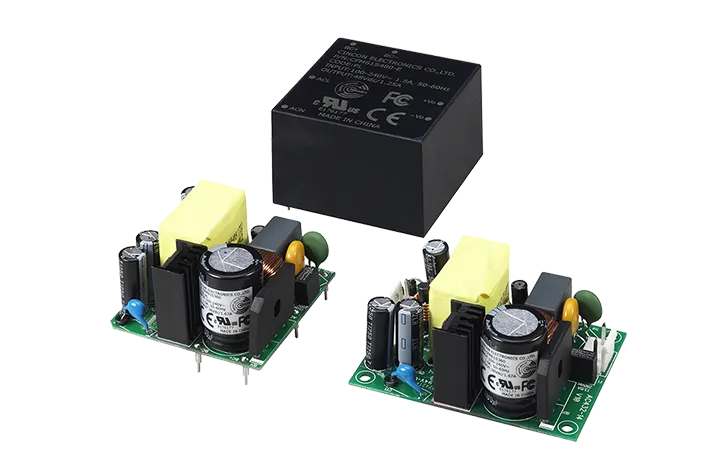

The Cincon CFM61S050 PL is a 60-watt AC-DC power supply designed for ITE (Commercial) applications. This open frame unit operates with a universal input voltage range of 90 to 264 VAC, providing a stable 5V output at 8A.
With a compact 2x2 inch footprint and through-hole mounting, it offers a high efficiency of 86%. The operating temperature range is -30°C to 70°C with derating. It is approved by CE, cURus, FCC, and Nemko, adhering to the 62368-1 standard.
Key features include continuous short circuit protection and over voltage protection. The power supply is designed for reliable performance in various industrial and commercial equipment.
90-264 VAC.
5V at 8A.
-30°C to 70°C with derating.
6-DIP Module, through-hole mount.
86%.
50.8mm x 50.8mm x 34.2mm (2.00" x 2.00" x 1.35").
62368-1.
