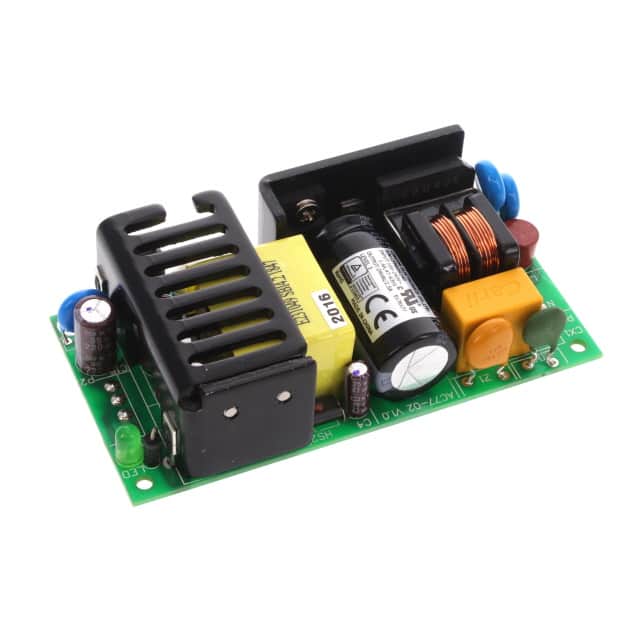

The CFM60S360-P is an open-frame AC/DC converter manufactured by Cincon Electronics Co. LTD. This module provides a 60W power output with a single output channel delivering 1.67A at 36V. It operates with a wide input voltage range of 90 to 264 VAC, making it suitable for universal applications.
Designed for ITE (Commercial) use, this converter boasts an efficiency of 88% and features universal input capabilities. The mounting type is through-hole, and the dimensions are 101.6mm x 50.8mm x 32.4mm. The operating temperature range is from 0°C to 70°C, with derating applied.
Compliance is indicated by agencies such as CE, cURus, FCC, and TUV, with a standard number of 62368-1. The product is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected. This converter is an ideal choice for applications requiring reliable power conversion in commercial environments.
The input voltage range is 90 to 264 VAC.
It provides 36V at 1.67A, with a total power of 60W.
The operating temperature range is 0°C to 70°C with derating.
It uses a module package with through hole mounting.
It is approved to CE, cURus, FCC, and TUV standards, compliant with 62368-1.
Yes, it is designed for ITE (Commercial) applications.
The efficiency is 88%.
