| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

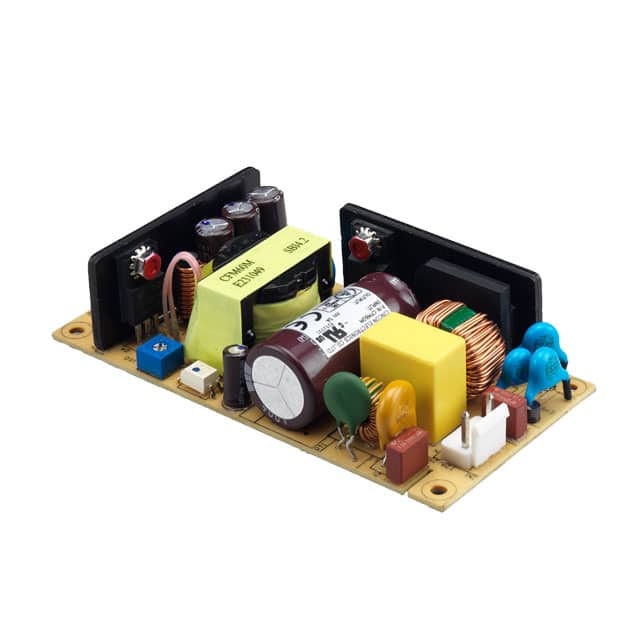

The CFM60M050 from Cincon Electronics Co. LTD is an open frame AC/DC converter designed for ITE (Commercial) and Medical applications. This unit delivers 40W of power with a maximum output current of 8A.
Key electrical specifications include a universal input capability and an efficiency rating of 82%. The converter provides 4 kV of isolation voltage. It operates within a temperature range of -20°C to 70°C, with derating applied at higher temperatures.
Mechanically, the CFM60M050 features a chassis mount design with dimensions of 101.6mm x 50.8mm x 27.9mm. It has a single output and is approved by CE, cURus, FCC, and TUV.
Environmental compliance includes RoHS3 compliance, an MSL rating of 1, and REACH unaffected status.
-20°C to 70°C with derating.
82%.
4 kV.
1 output.
101.6mm x 50.8mm x 27.9mm (4.00" x 2.00" x 1.10").
CE, cURus, FCC, TUV.
ITE (Commercial) and Medical.
