Mfr Part #:

CFM50S050-P

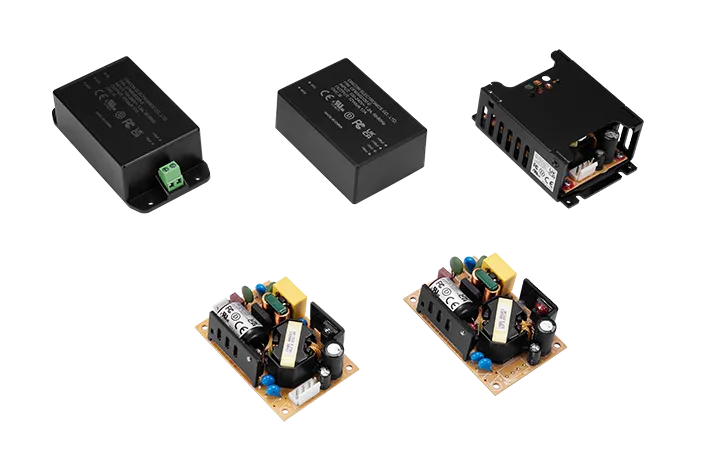

The Cincon CFM50S050-P is a 40W AC-DC converter featuring a 5V output and 85% efficiency. It offers a universal input range and an open frame package.

Stock on Request

CFM50S050-P Description

Short technical summary and product information.

The Cincon CFM50S050-P is a 40-watt AC-DC power supply designed for ITE and household appliance applications. It operates with a universal input voltage range of 90-264 VAC or 120-370 VDC, providing a stable 5V output at 8A.

This open-frame converter boasts a high efficiency of up to 85% and features adjustable output and universal input capabilities. Its compact dimensions of 76.2mm x 50.8mm x 29.0mm make it suitable for space-constrained designs. The operating temperature range is -30°C to 80°C with derating.

Compliance is met with CE, cURus, and FCC approvals, adhering to standard numbers 60335-1 and 62368-1. The unit is designed for through-hole mounting and comes in a 6-DIP module package. It operates at altitudes up to 5000m.

CFM50S050-P Quick Information

Product Type: AC DC Converter

Canonical Name: CFM50S050-P AC-DC Power Supply

Subcategory: Open Frame

CFM50S050-P Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

CFM50S050-P Features

40W AC-DC power supply.
5V output voltage.
85% high efficiency.
Universal input voltage range.
Open frame, through-hole package.

CFM50S050-P Applications

Suitable for industrial control panel power.
Ideal for medical equipment internal power.
Used in telecommunications base station systems.
Powers automation and robotics control boards.
Integrates into commercial display backlights.

CFM50S050-P FAQs

6 frequently asked questions generated from this part’s specifications.

What is the power output of the CFM50S050-P?

The CFM50S050-P provides a power output of 40W.

What is the output voltage for the CFM50S050-P?

The output voltage is 5V.

What is the input voltage range for the CFM50S050-P?

The input voltage range is 90-264 VAC or 120-370 VDC.

What is the operating temperature range of the CFM50S050-P?

The operating temperature range is -30°C to 80°C with derating.

What type of package does the CFM50S050-P use?

The CFM50S050-P uses an open frame, 6-DIP module package for through-hole mounting.

What are the key approvals for the CFM50S050-P?

The CFM50S050-P has CE, cURus, and FCC approvals.

Category	AC DC Converters
Manufacturer Name	Cincon Electronics Co. LTD
Applications	Household Appliances, ITE (Commercial)
Approval Agency	CE, cURus, FCC
Current	8A
Efficiency	85%
Features	Adjustable Output, Universal Input
Height	29.0mm (1.14")
Length	76.2mm (3.00")
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature	[{'min': -30, 'max': 80, 'unit': '°C', 'display_value': '-30°C ~ 80°C (With Derating)'}]
Output Voltage	5V
Power (Watts)	40 W
Standard Number	60335-1; 62368-1
Type	Open Frame
Voltage	[{'min': 90, 'max': 264, 'unit': 'VAC', 'display_value': '90 ~ 264 VAC'}, {'min': 120, 'max': 370, 'unit': 'VDC', 'display_value': '120 ~ 370 VDC'}]
Width	50.8mm (2.00")
