| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

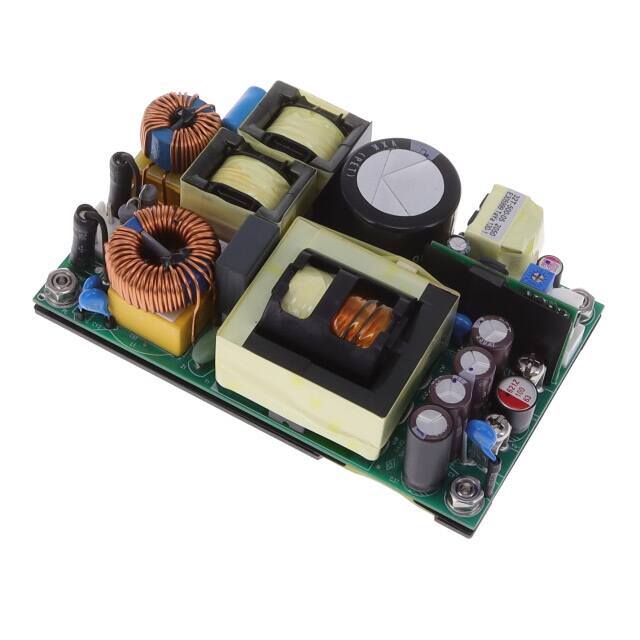

The Cincon Electronics Co. LTD CFM500S480 is a 500 Watt AC-DC power supply with Power Factor Correction (PFC). It offers a universal input range of 80-264Vac and a nominal output voltage of 48Vdc with a maximum current of 7.92A under natural convection, and up to 10.42A with forced air cooling.
This power supply boasts high efficiency up to 94.5% and a compact 3"x5" size, delivering a power density of up to 20.96W/Inch3. It operates with a wide temperature range from -40°C to 85°C with derating and meets EN61000-3-2 for active PFC and EN55032 Class B for EMI. Features include remote On/Off control, Power Good & Power Fail signals, and a +5V standby output.
Designed for applications such as Household Appliances and ITE (Commercial), the CFM500S480 is chassis mountable and built with an open frame construction. It holds safety approvals from CE, cURus, D-Mark, and FCC, complying with standards like IEC/EN60335-1 and IEC/EN62368-1.
The nominal output voltage is 48Vdc.
The maximum output current is 7.92A under natural convection and 10.42A with forced air.
The power rating is 380W under natural convection and 500W with forced air.
The efficiency is typically 94%, reaching up to 94.5% with a fan.
The operating temperature range is -40°C to 85°C.
Yes, it features active PFC that meets EN61000-3-2.
It has safety approvals from CE, cURus, D-Mark, and FCC.
