| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

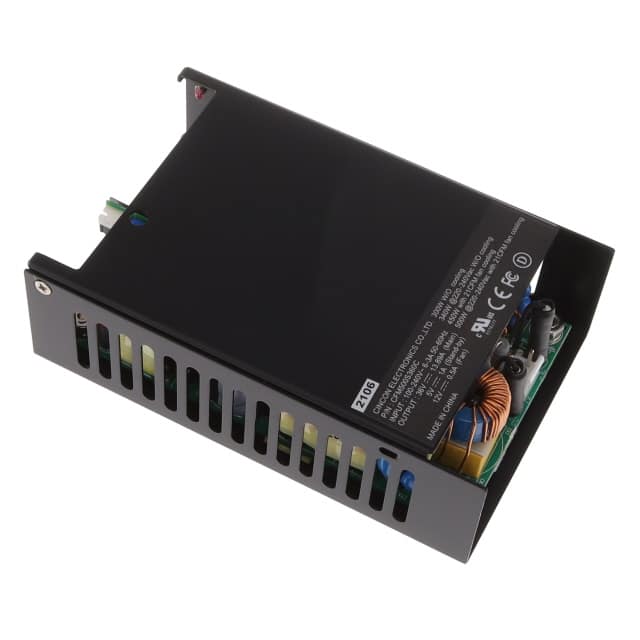

The Cincon CFM500S360C is a 500 Watt AC-DC power supply from the CFM500S series, designed for efficient power conversion. It offers a nominal output voltage of 36V and a continuous output current of 11.39A with forced air convection, or 10.56A without. The unit boasts a high efficiency of up to 94.5% and a universal input voltage range of 80-264Vac.
This enclosed power supply features a compact 3"x5" size (136.0mm x 87.0mm x 42.5mm) and is suitable for chassis mounting. Key features include Active PFC meeting EN61000-3-2, compliance with EN55032 Class B and IEC/EN60335-1 standards, and approval agency certifications including CE and cURus. It also includes +5V standby and +12V fan outputs, remote on/off control, and over-temperature protection.
Ideal for applications requiring reliable and efficient power conversion, such as ITE (Commercial) and household appliances, the CFM500S360C operates across a wide temperature range of -40°C to 85°C.
The nominal output voltage is 36Vdc.
The output current is 11.39A with forced air convection and 10.56A without.
The typical efficiency is 94.5%.
The operating temperature range is -40°C to 85°C.
