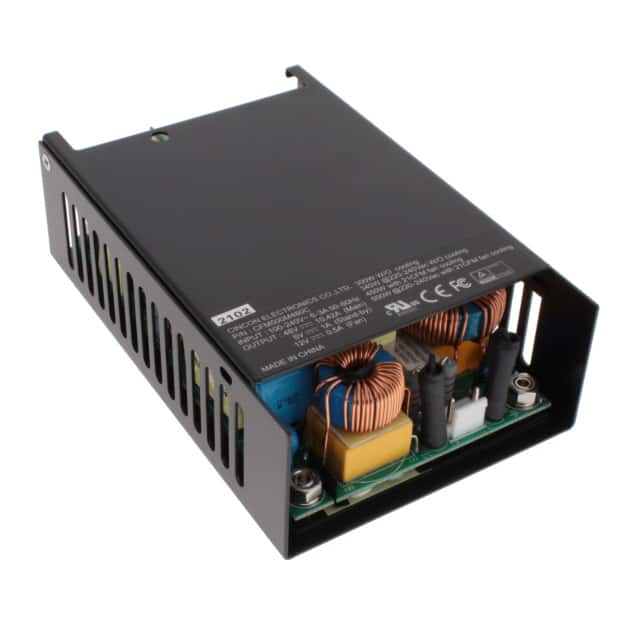

The Cincon Electronics CFM500M480C is an enclosed AC/DC power converter designed for applications requiring a stable 48V output. This unit delivers 320W of power, with a forced air rating of 500W, and features a chassis mount for easy integration into systems.
Key electrical specifications include an efficiency of 94% and an isolation voltage of 4 kV. The converter supports universal input and offers features such as adjustable output, PFC, remote on/off, remote sense, and a standby output. It operates within a temperature range of -30°C to 85°C with derating.
Designed for applications in household appliances and medical equipment, the CFM500M480C meets standards such as 60335-1 and 60601-1. It is RoHS3 compliant and has an MSL of 1.
Mechanical dimensions are 136.0mm in length, 87.0mm in width, and 42.5mm in height, making it suitable for integration into various product designs.
The output voltage is 48V (single output).
320W with convection cooling, 500W with forced air cooling.
-30°C to 85°C with derating.
ANSI/AAMI, ES, IEC; standards 60335-1 (household appliances) and 60601-1 (medical).
94%.
Chassis mount.
136.0mm x 87.0mm x 42.5mm (5.35" x 3.43" x 1.67").
