| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

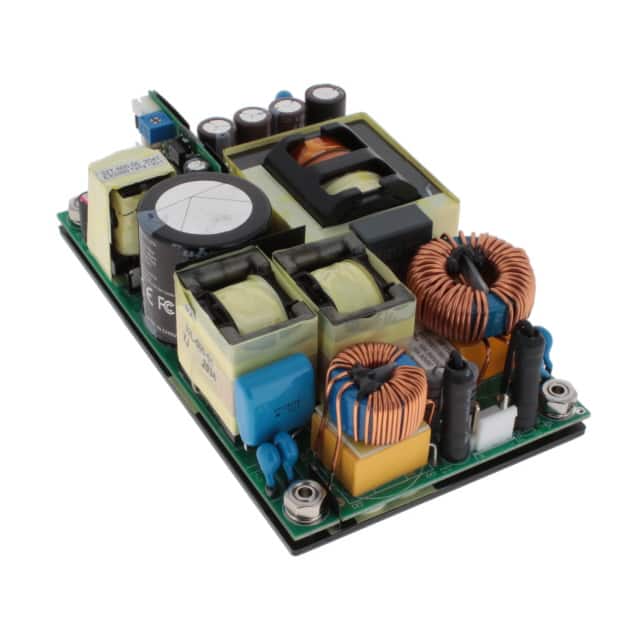

The Cincon Electronics CFM500M480 is an open-frame AC/DC power converter with a power rating of 320W, capable of 500W with forced air. It provides a 48V output and features adjustable output, Power Factor Correction (PFC), remote on/off, remote sense, and a standby output. The converter has a universal input and an efficiency of 94%.
Designed for chassis mounting, this unit measures 127.0mm in length, 76.2mm in width, and 39.1mm in height. It operates within a temperature range of -30°C to 85°C with derating. The CFM500M480 is approved by ANSI/AAMI, ES, and IEC standards and meets safety standards like 60335-1 and 60601-1.
This converter is suitable for applications in household appliances and medical devices. It features an isolation voltage of 4 kV and a current rating of 6.67 A. The RoHS status is compliant with RoHS3, and it has an MSL rating of 1.
The CFM500M480 provides a single output of 48V at 6.67A.
The CFM500M480 is rated for 320W continuous power, or 500W with forced air cooling.
The operating temperature range is -30°C to 85°C with derating.
The CFM500M480 uses chassis mount.
Key features include adjustable output, PFC, remote on/off, remote sense, standby output, and universal input.
The CFM500M480 has an efficiency of 94%.
The dimensions are 127.0mm x 76.2mm x 39.1mm.
