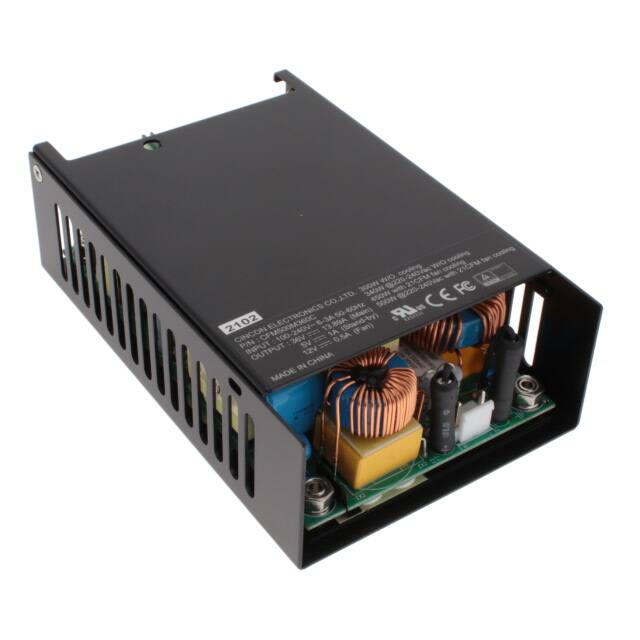

The Cincon Electronics CFM500M360C is an enclosed AC/DC power converter designed for robust performance in demanding environments. It delivers 320W of power, with a peak capability of 500W under forced air conditions, and boasts a high efficiency of 94%.
This converter features a universal input and provides a single output voltage. Its extensive features include adjustable output, power factor correction (PFC), remote on/off control, remote sense capability, and a standby output. The isolation voltage is rated at 4 kV, ensuring safety and reliability.
Designed for ease of integration, the CFM500M360C utilizes a chassis mount for secure installation. Its operating temperature range is from -30°C to 85°C, with derating applied at higher temperatures. The dimensions are 136.0mm x 87.0mm x 42.5mm.
Compliance with standards such as ANSI/AAMI, ES, IEC, 60335-1, and 60601-1 is noted, making it suitable for applications in household appliances and medical fields. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1.
36V.
8.89A.
320W (500W with forced air cooling).
94%.
-30°C to 85°C with derating.
ANSI/AAMI, ES, IEC, and standards 60335-1 and 60601-1.
4kV.
