| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

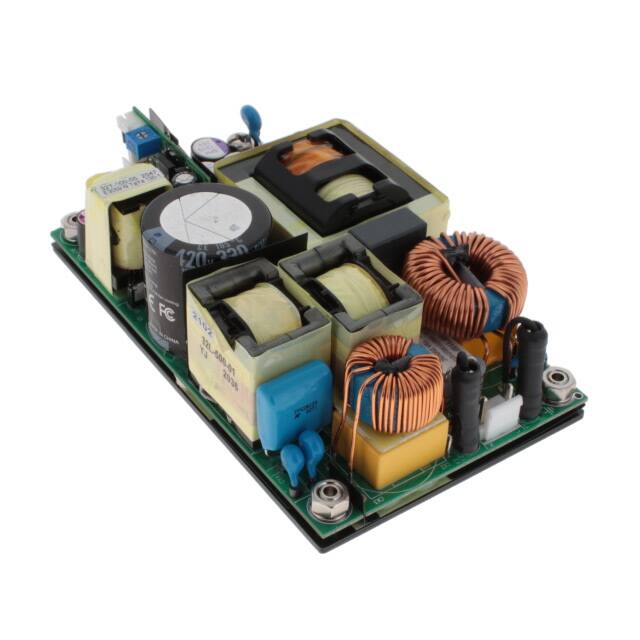

The Cincon Electronics CFM500M120 is an open frame AC/DC converter with a power output of 250W, capable of 500W with forced air. It provides a 12V output and features adjustable output, power factor correction (PFC), remote on/off, remote sense, and a standby output. The converter has a universal input and an efficiency of 91.5%.
Designed for chassis mounting, this converter has dimensions of 127.0mm x 76.2mm x 39.1mm. It operates within a temperature range of -30°C to 85°C with derating. The CFM500M120 is approved by ANSI/AAMI, ES, and IEC standards and meets RoHS3 compliance. Its applications include household appliances and medical equipment.
12V DC at 20.83A.
91.5%.
-30°C to 85°C with derating.
4 kV.
ANSI/AAMI, ES, IEC 60335-1 and 60601-1.
Open Frame, Chassis Mount.
250W (500W with forced air).
