| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

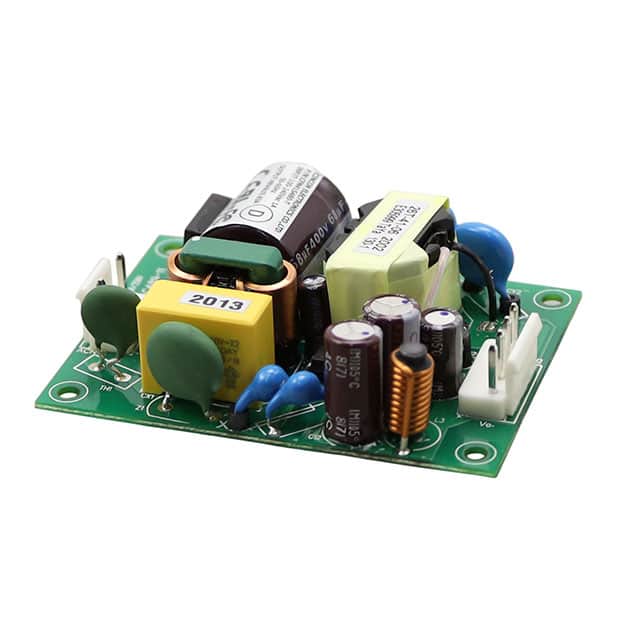

The Cincon Electronics CFM41S480-T is a 40-watt single output AC-DC converter designed for various applications. It operates with a universal input voltage range of 90-264VAC and provides a stable 48V output.
This open frame converter boasts a high efficiency of 90% and features continuous short circuit protection and over voltage protection. Its compact dimensions of 68.6mm x 50.8mm x 19.7mm make it suitable for integration into systems where space is a consideration. The mounting type is chassis mount.
Key specifications include an input current of 0.55A max at 240VAC, a holdup time of 10ms typ, and an operating temperature range of -40°C to 85°C with derating. The device meets EN55032 Class B and CISPR/FCC Class B emissions standards and is certified to IEC/EN/UL62368-1 and IEC/EN60335-1 safety standards.
Applications for this converter include household appliances and ITE (Commercial) equipment, benefiting from its reliable performance and compliance with international safety and emission regulations.
90-264 VAC or 120-370 VDC.
48V.
40W.
-40°C to 85°C with derating.
Short circuit protection (hiccup mode, auto recovery) and over voltage protection (TVS component clamp).
90% typical.
Open frame, chassis mount, dimensions 68.6mm x 50.8mm x 19.7mm.
