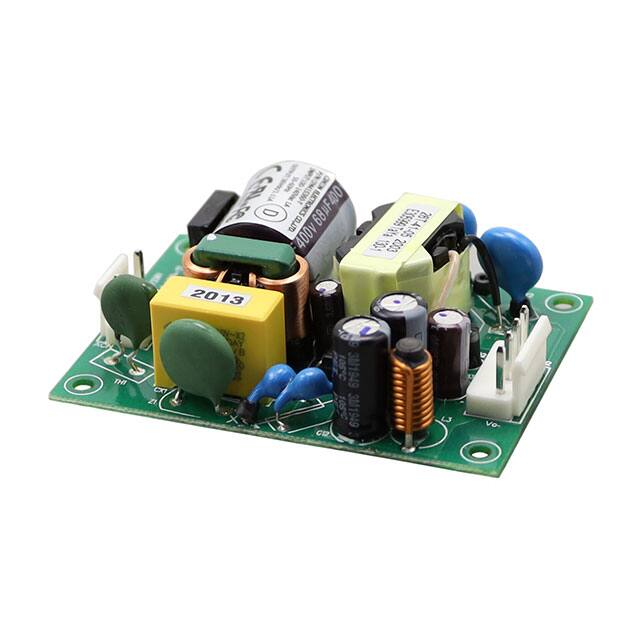

The Cincon CFM41S360-T is a 40-watt, single-output AC-DC converter designed for open frame applications. It operates with a universal input voltage range of 90-264 VAC and provides a stable 36V output at 1.11A.
Key electrical specifications include a high efficiency of 90%, a typical holdup time of 10ms at 115VAC, and comprehensive protection features such as continuous short circuit protection and over-voltage protection. The converter meets stringent safety and emission standards, including IEC/EN/UL62368-1 and EN55032 Class B.
With dimensions of 68.6mm x 50.8mm x 19.7mm, this open frame converter is suitable for chassis mounting. Its operating temperature range is -40°C to 85°C, with derating applied. The CFM41S360-T is designed for applications in household appliances and commercial ITE equipment.
90-264 VAC (also 120-370 VDC).
36V nominal.
1.11A continuous, with 2.22A peak.
-40°C to 85°C with derating.
Open frame, chassis mount.
90% typical.
Short circuit protection (hiccup mode, auto recovery) and over voltage protection (TVS clamp).
