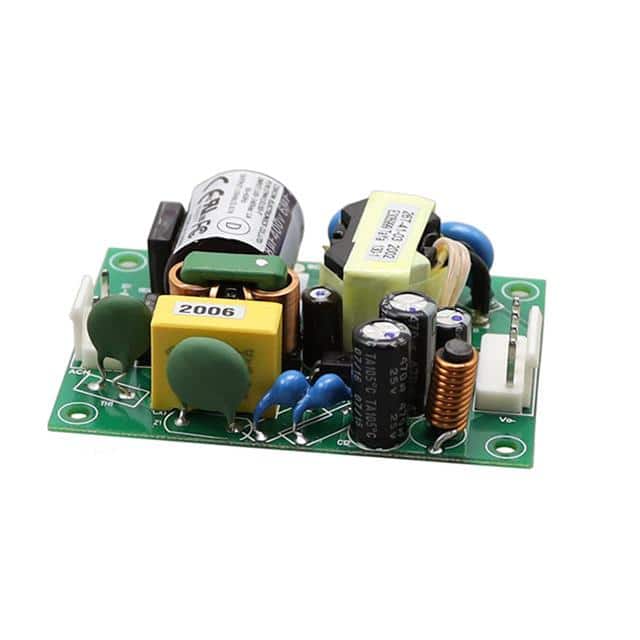

The Cincon Electronics CFM41S150-T is a 40-watt, single-output AC-DC power supply designed for open-frame applications. It operates with a universal input voltage range of 90-264VAC and provides a stable 15V output at 2.67A, with a peak current capability of 5.34A. This converter boasts high efficiency, reaching up to 90% typical, and features a low no-load power consumption of less than 0.15W.
Designed for reliability and safety, the CFM41S150-T includes continuous short circuit protection with auto-recovery and over-voltage protection. It meets stringent safety and emission standards, including IEC/EN/UL62368-1 and EN55032 Class B, making it suitable for ITE and household appliance applications. The operating temperature range is -40°C to 85°C with derating, and it is cooled by natural convection.
With dimensions of 68.6mm x 50.8mm x 19.7mm, this chassis-mount converter is compact for integration into various systems. Its robust design ensures a typical MTBF of 350K hours, contributing to long-term operational stability.
The output voltage is 15V.
The maximum output current is 2.67A.
The power rating is 40W.
The input voltage range is 90-264VAC or 120-370VDC.
The operating temperature range is -40°C to 85°C.
Yes, it meets EN55032 Class B and FCC Part 15 Class B standards.
It uses chassis mount.
