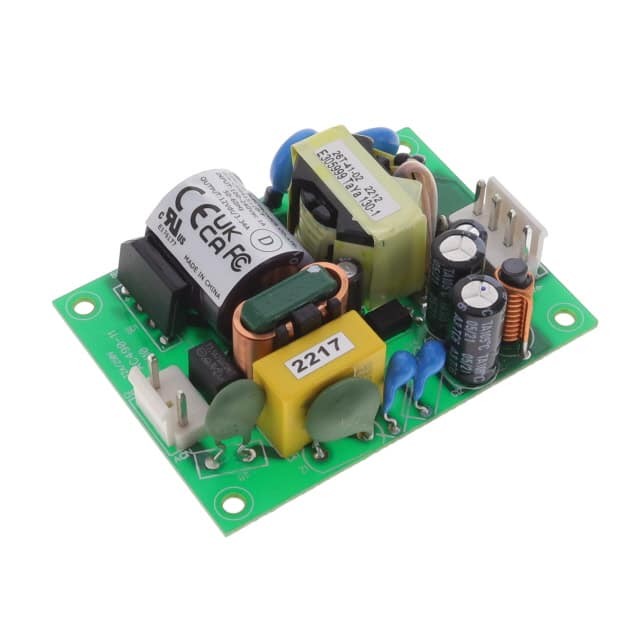

The Cincon CFM41S120-T is a 40-watt single output AC-DC converter from the CFM 41S Series. It is designed for universal input voltage ranging from 90 to 264VAC and offers a stable 12V output at 3.34A.
This open frame converter boasts a high efficiency of 90% and includes features such as continuous short circuit protection and over voltage protection. It meets stringent safety and emission standards including IEC/EN/UL62368-1 and EN55032 Class B.
The unit operates within a wide temperature range of -40°C to 85°C and is cooled by natural convection. Its compact dimensions of 68.6mm x 50.8mm x 19.7mm make it suitable for various applications, including household appliances and ITE commercial equipment. The mounting type is chassis mount.
90-264 VAC or 120-370 VDC, 47-63 Hz.
Open frame chassis mount with dimensions 68.6mm x 50.8mm x 19.7mm.
-40°C to 85°C with derating.
12V at 3.34A, with peak current of 6.66A for up to 10 seconds at 10% duty cycle.
90% typical at 230VAC and full load at 25°C.
Short circuit protection (hiccup mode, auto recovery) and over voltage protection (TVS clamp).
3000 VAC input to output.
