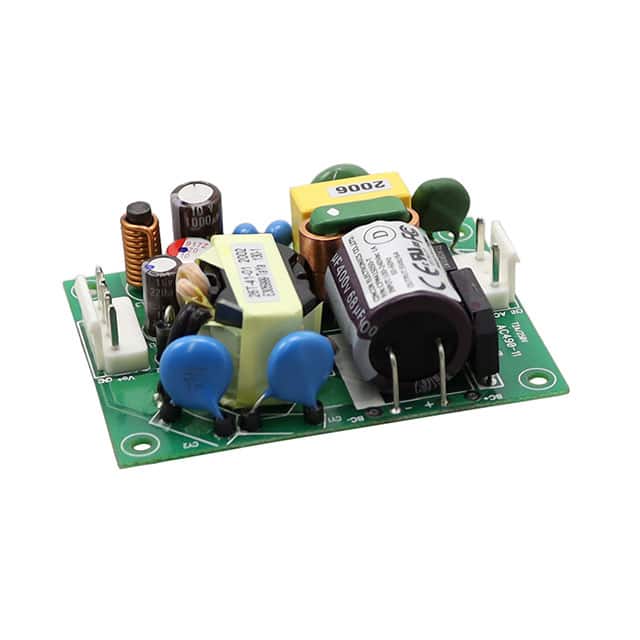

The Cincon CFM41S050-T is a 40-watt single output AC-DC open frame power supply. It operates with a universal input voltage range of 90-264VAC and provides a stable 5V output at 6A, delivering up to 30W of power. This series is designed for efficiency, boasting a typical efficiency of 87% at 230VAC.
Key features include continuous short circuit protection and over voltage protection. The unit meets EN55032 Class B and CISPR/FCC Class B standards for emissions, making it suitable for applications requiring low noise. It also complies with IEC/EN/UL62368-1 and IEC/EN60335-1 safety standards.
The CFM41S050-T has an open frame construction and is chassis mountable. Its dimensions are 68.6mm x 50.8mm x 19.7mm. The operating temperature range is -40°C to 85°C with derating, and it utilizes natural convection for cooling. This power supply is designed for applications in household appliances and ITE (Commercial) equipment.
The output voltage is 5V.
The maximum output current is 6A.
The power rating is 30W.
The typical efficiency is 87%.
The operating temperature range is -40°C to 85°C with derating.
Yes, it meets EN55032 Class B and FCC Part 15 Class B standards.
