| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

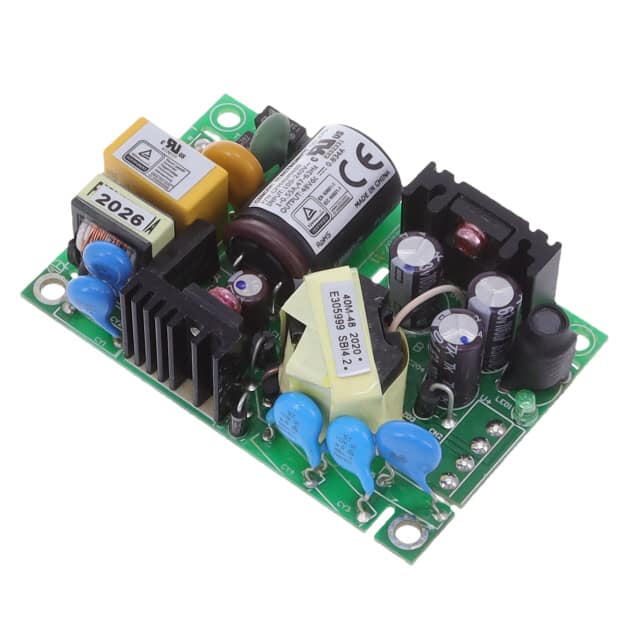

The CFM40M480-P from Cincon Electronics Co. LTD is an Open Frame AC DC converter with a power rating of 40W. It accepts a wide input voltage range of 90 to 264 VAC and provides a single output.
This converter is designed for ITE (Commercial) and Medical applications, featuring Universal Input and an efficiency of 88%. It is compliant with standards such as 60601-1 and 60950-1, and approved by agencies including CE, cURus, FCC, and TUV.
The CFM40M480-P has a 6-DIP Module package and is designed for Through Hole mounting. Its dimensions are 76.2mm x 50.8mm x 25.0mm. The operating temperature range is -20°C to 70°C with derating.
This product is RoHS3 Compliant and has a Moisture Sensitivity Level of 1 Unlimited.
The CFM40M480-P provides a single output of 48V at 834mA.
The input voltage range is 90 to 264 VAC.
The operating temperature range is -20°C to 70°C with derating.
It complies with IEC 60601-1 for medical equipment and IEC 60950-1 for ITE equipment.
It comes in a 6-DIP module package with through-hole mounting.
The efficiency is 88%.
