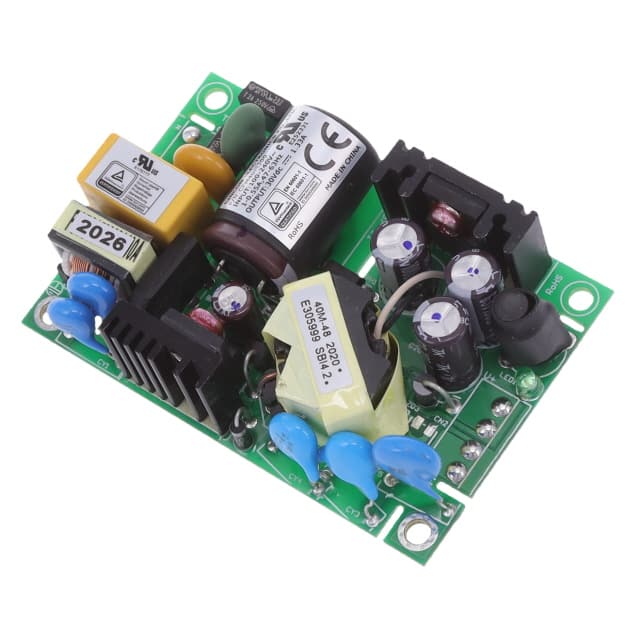

This Cincon CFM40M300-P is an open frame AC/DC converter designed for various applications, including ITE (Commercial) and Medical. It operates with a universal input voltage range of 90 to 264 VAC, delivering a stable 30V DC output.
The converter provides a maximum output current of 1.33A, resulting in a total power output of 40W. It boasts high efficiency at 88% and features tight load and line regulation, with ±1% load regulation and ±0.5% line regulation. The unit is designed for through-hole mounting and comes in a 6-DIP Module package.
With dimensions of 76.2mm x 50.8mm x 25.0mm, it fits within standard board-mount configurations. The operating temperature range is -20°C to 70°C with derating. It holds multiple certifications including CE, cURus, FCC, and TUV, and complies with standards such as 60601-1 and 60950-1.
The input voltage range is 90 to 264 VAC.
The output voltage is 30V and the maximum output current is 1.33A.
The power rating is 40W.
The efficiency is 88%.
The operating temperature range is -20°C to 70°C with derating.
The package type is a 6-DIP through-hole module.
The dimensions are 76.2mm x 50.8mm x 25.0mm.
