| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

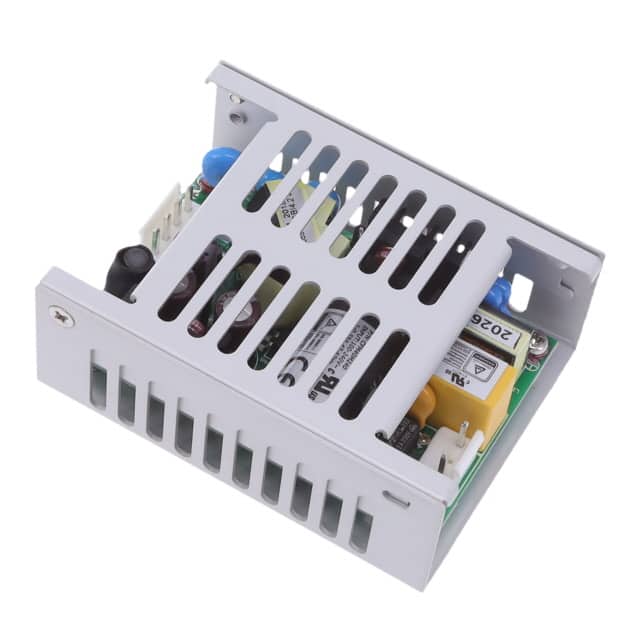

The Cincon Electronics CFM40M240-C is an enclosed AC/DC converter designed for ITE (Commercial) and Medical applications. It delivers 40W of power with a 1.67A output current and a 24V output voltage. This converter features a universal input and a chassis mount for easy integration into various systems.
Key specifications include an efficiency of 88%, an isolation voltage of 4kV, and an operating temperature range of -10°C to 70°C with derating. The dimensions are 81.3mm x 50.0mm x 32.0mm. It holds approvals from CE, cURus, FCC, and TUV, ensuring compliance for a wide range of uses.
This model is suitable for applications requiring reliable power conversion in commercial or medical environments. Its robust design and multiple agency approvals make it a versatile choice for system designers.
The CFM40M240-C provides a single 24V output at 1.67A.
The CFM40M240-C is rated for 40W output power.
The CFM40M240-C has an efficiency of 88%.
The CFM40M240-C operates from -10°C to 70°C with derating.
The CFM40M240-C provides 4kV isolation voltage.
The CFM40M240-C is designed for chassis mounting.
The CFM40M240-C is approved by CE, cURus, FCC, and TUV.
