| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Duration | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

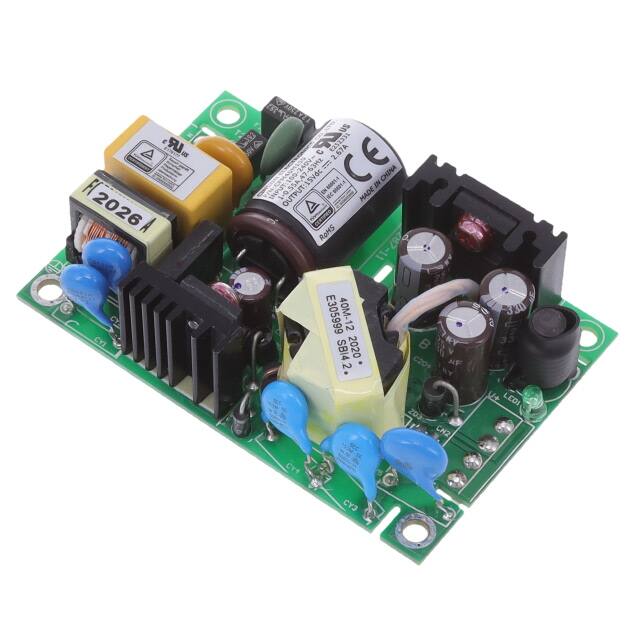

This Cincon CFM40M150-P is an AC/DC converter designed for board-mount applications. It delivers 40W of power with a single 15V output and a maximum current of 2.67A. The converter features a universal input voltage range of 90 to 264 VAC, making it suitable for global use. Its open frame design and through-hole mounting type facilitate integration into various systems.
With an efficiency rating of 87%, the CFM40M150-P operates within a temperature range of -20°C to 70°C with derating. The module measures 76.2mm x 50.8mm x 25.0mm. It is approved by CE, cURus, FCC, and TUV, and complies with standards such as 60601-1 and 60950-1. Applications include ITE (Commercial) and Medical.
The unit is housed in a 6-DIP Module package. It features universal input and is designed for reliable performance in commercial and medical environments. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
90 to 264 VAC.
6-DIP Module, through-hole mounting.
-20°C to 70°C with derating.
15V at 2.67A, 40W.
87%.
60601-1 (medical) and 60950-1 (ITE).
76.2mm x 50.8mm x 25.0mm.
