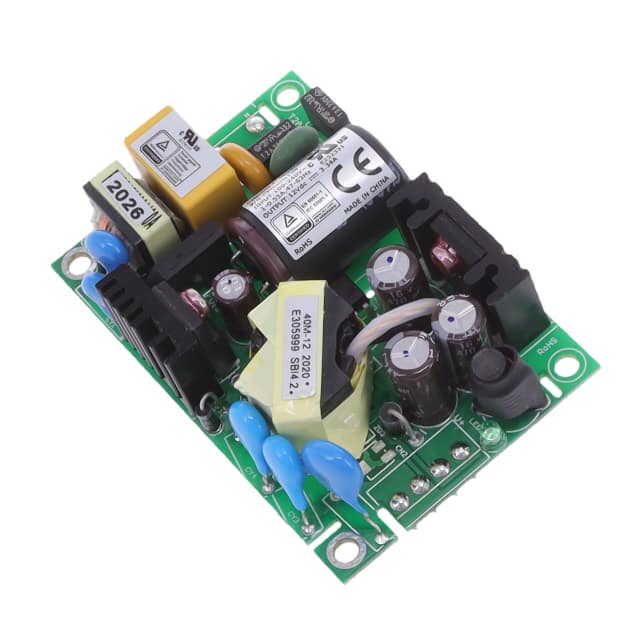

The Cincon Electronics CFM40M120-P is a 40W AC/DC converter designed for reliable power conversion in various applications. It operates with a wide input voltage range of 90 to 264 VAC, making it suitable for global use.
This converter features an open frame construction and through-hole mounting, facilitating easy integration into electronic systems. Key specifications include an efficiency of 86% and a universal input feature. It is designed for applications such as ITE (Commercial) and Medical.
The dimensions of the CFM40M120-P are 76.2mm x 50.8mm x 25.0mm. It operates within a temperature range of -20°C to 70°C with derating. The part is approved by CE, cURus, FCC, and TUV, adhering to standards like 60601-1 and 60950-1.
90 to 264 VAC.
6-DIP Module.
-20°C to 70°C with derating.
3.34A.
86%.
76.2mm x 50.8mm x 25.0mm.
CE, cURus, FCC, TUV.
