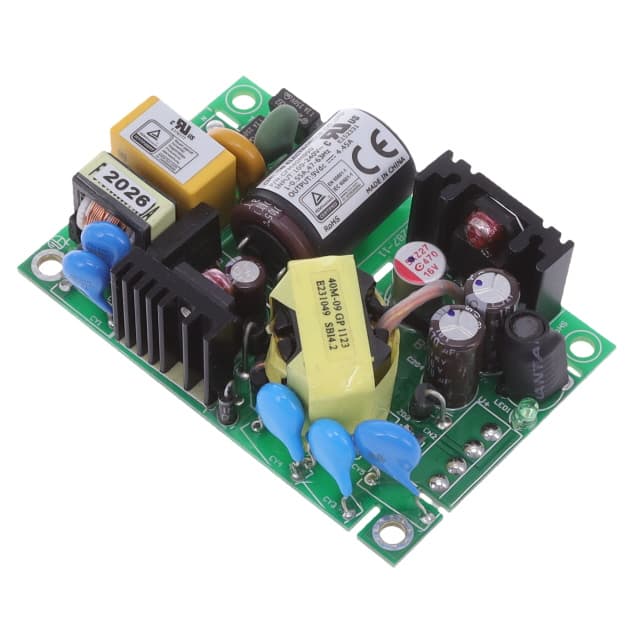

This AC/DC converter from Cincon Electronics, part number CFM40M090-P, delivers 40W of power with a stable 9V output. Designed for versatility, it accepts a universal input voltage range of 90-264 VAC, making it suitable for global applications.
The CFM40M090-P boasts an efficiency of 84%, contributing to reliable power conversion. Its features include universal input capability, making it a flexible choice for various designs.
With a through-hole mounting type, this converter is designed for robust integration into electronic systems. Its dimensions are 76.2mm in length, 50.8mm in width, and 25.0mm in height. The operating temperature range is -20°C to 70°C, with derating applied at higher temperatures.
This model is approved by CE, cURus, FCC, and TUV, and complies with standards such as 60601-1 and 60950-1, indicating its suitability for ITE (Commercial) and Medical applications.
The output voltage is 9V.
The maximum output current is 4.45A.
The power rating is 40W.
The efficiency is 84%.
The operating temperature range is -20°C to 70°C, with derating.
It is mounted using the through-hole method.
