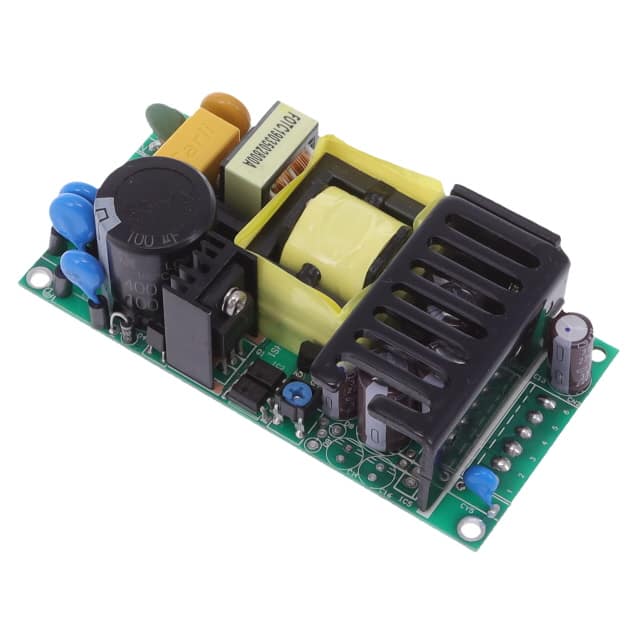

The CFM40D-01-P from Cincon Electronics Co. LTD is an open frame AC/DC converter designed for ITE (Commercial) applications. This unit delivers 55W of power with a 12V output and a secondary 5A/2.5A output. It features universal input and an efficiency rating of 80% typical.
The converter operates within a temperature range of 0°C to 70°C, with derating applied. It has been approved by CE, cURus, FCC, and TUV, indicating compliance with various international standards. The CFM40D-01-P is suitable for designs requiring reliable power conversion in commercial environments.
This model has two outputs, providing flexibility for different power needs within a system. Its open frame construction is typical for board-mount power supplies where space and integration are key considerations.
The output voltage is 12V.
The power rating is 55W.
The operating temperature range is 0°C to 70°C (With Derating).
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
