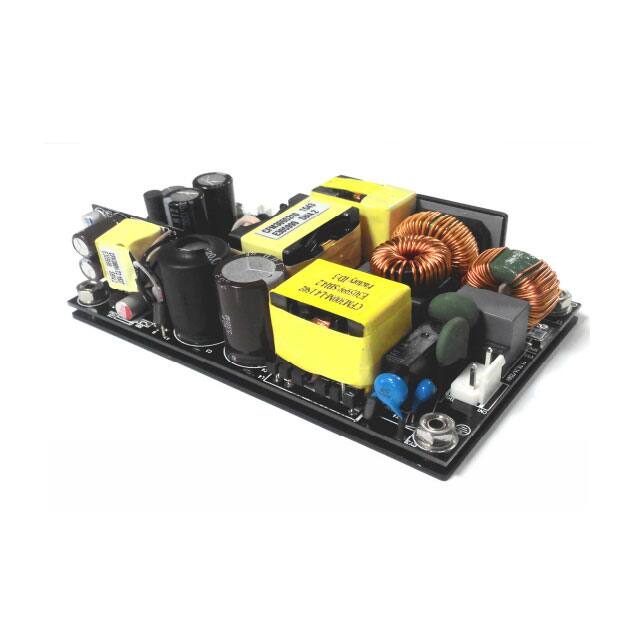

This CFM300S360 AC/DC converter from Cincon Electronics Co. LTD offers a robust 300W power output with a 36V rating. Designed as an open frame unit, it is suitable for chassis mounting, making it versatile for various integration needs.
Key electrical specifications include a high efficiency of 93.5% and a current rating of 8.34A. The converter operates within a wide temperature range of -40°C to 80°C, with derating applied at higher temperatures. It supports universal input and includes features such as adjustable output, PFC, remote On/Off, remote Sense, and a standby output.
Compliance and safety are addressed with approval agencies including CE, cURus, FCC, and TUV. The unit is RoHS3 compliant and has an MSL of 1, indicating unlimited moisture sensitivity. Its dimensions are 127.0mm x 76.2mm x 36.1mm.
This converter is ideal for ITE (Commercial) applications requiring reliable power conversion.
The CFM300S360 provides a single output of 36V at 8.34A.
The operating temperature range is -40°C to 80°C with derating.
The efficiency is 93.5%.
It uses chassis mount.
The dimensions are 127.0mm x 76.2mm x 36.1mm (5.00" x 3.00" x 1.42").
