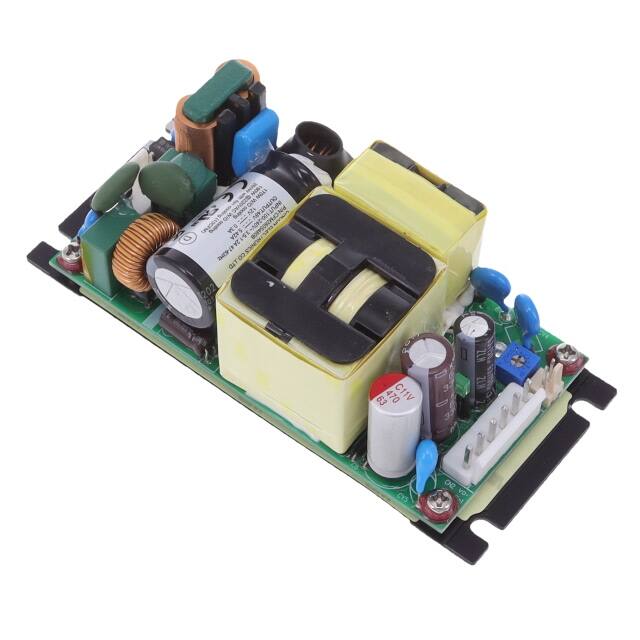

The Cincon Electronics CFM260S480B is a 260W AC/DC converter designed for applications requiring reliable power conversion. This unit features an Open Frame construction and is suitable for Chassis Mount installations.
Key electrical specifications include a power rating of 260W and an efficiency of 93%. It offers universal input and includes features such as Baseplate and PFC. The operating temperature range is -30°C to 80°C with derating.
Mechanical dimensions are 116.8mm in length, 50.8mm in width, and 38.6mm in height. The converter is designed to meet standards such as 60335-1 and 62368-1.
This AC/DC converter is suitable for applications in Household Appliances and ITE (Commercial) sectors. It has a single output and provides 3 kV of voltage isolation.
The power rating is 260W.
It supports Chassis Mount.
The operating temperature range is -30°C to 80°C, with derating.
The RoHS Status is RoHS3 Compliant.
